Lumex SML-LXF3535UVCC10 Standard LED

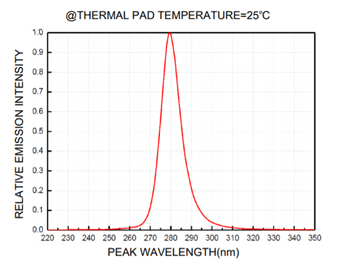

Lumex SML-LXF3535UVCC10 Standard LED features two UVC chips in one LED available in the violet lens. This LED includes 270nm to 285nm peak wavelength, 8mW to 10mW radiant flux, and 120° viewing angle. The SML-LXF3535UVCC10 LED operates at -30°C to 60°C temperature range and 5V to 7V forward input voltage range. This LED offers 150mA maximum forward current, 0.7mW power dissipation, and 20℃/W thermal resistance. The SML-LXF3535UVCC10 LED is available in square water clear transparency lens.
