Littelfuse TP5.0SMDJ Surface-Mount TVS Diodes

Littelfuse TP5.0SMDJ Surface-Mount TVS Diodes are designed to protect sensitive electronic equipment from voltage transients due to lightning strikes. TP5.0SMDJ diodes are AEC-Q101 qualified and offer excellent clamping capability, a low-profile SMD package, a glass-passivated chip junction, and a built-in strain relief. These diodes feature 5000W peak pulse power capability at 10µs/1000µs waveform, a fast response time of typically less than 1ps, and a low incremental surge resistance. Littelfuse TP5.0SMDJ Surface-Mount TVS Diodes are suitable for protecting I/O interfaces, V_CC bus, and other vulnerable circuits found in telecom, computer, industrial, and consumer electronic applications.

Features

Low-profile SMD package
Typical failure mode is short from over-specified voltage or current
Built-in strain relief

Fast response time
Excellent clamping capability
Low incremental surge resistance
Matte tin lead-free plated

Applications

Telecom
Computers

Industrial
Consumer electronics

Specifications

5000W peak pulse power capability at 10μs/1000μs waveform
6.5W power dissipation
300A peak forward surge current
Whisker test conducted based on JEDEC JESD201A per table 4a and 4c
EFT protection of data lines in accordance with IEC 61000-4-4

ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(air), 30kV (contact)
1ps response time
Typical I_R less than 5μA when V_BR min>22V
Meets MSL 1 per J-STD-020, LF maximum peak of +260°C
-65°C to +150°C operating temperature range

Littelfuse TP5.0SMDJ Surface-Mount TVS Diodes

Features

Applications

Specifications

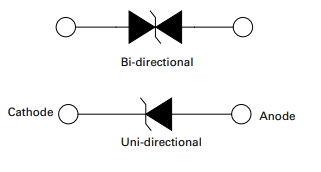

Functional Diagram
