Littelfuse SZSMF4L AEC-Q101 TVS Diodes

Littelfuse SZSMF4L AEC-Q101 TVS Diodes offer a peak power rating of 400W and a response time that is typically <1ns. These TVS diodes are designed to protect sensitive systems or components from high-voltage, high-energy transients. SZSMF4L diodes feature low Zener impedance, high surge, and excellent clamping capabilities. Littelfuse SZSMF4L AEC-Q101 TVS Diodes have a small size, making them ideal for use in automotive electronic applications.

Features

AEC-Q101 qualified
Fast response time
Excellent clamping capabilities

Zener transient overvoltage suppressors
Planar chip design with low leakage current performance
Lead orientation in tape

Specifications

Working Peak Reverse Voltage
- 5V to 78V for uni-directional
- 10V to 78V for bi-directional
400W peak power at 1ms

<1ns typical response time
ESD rating of class 3 per human body model
IEC-61000-4-2 ESD 30kV (air), 30kV (contact)
-55°C to +175°C operating temperature range

Littelfuse SZSMF4L AEC-Q101 TVS Diodes

Features

Specifications

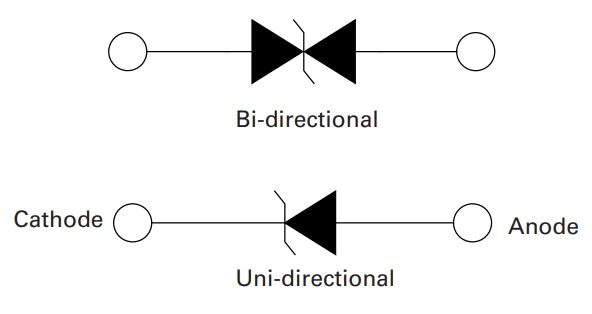

Functional Diagram
