Littelfuse SZ1SMA 400W TVS Diodes

Littelfuse SZ1SMA 400W TVS Diodes are unidirectional and bidirectional devices designed to protect voltage-sensitive electronics from high-voltage, high-energy transients. Littelfuse SZ1SMA TVS Diodes have high clamping capability and high surge capability as well as low zener impedance and fast response time (<1ns typical). Littelfuse SZ1SMA comes in a cost-effective, high-reliability package and is ideal for use in communication systems, automotive, medical equipment, and more.

Features

Zener transient overvoltage suppressors
5V to 70V working peak reverse voltage range (uni-directional)
10V to 78V working peak reverse voltage range (bi-directional)
6.4V to 86.0V standard zener breakdown voltage range (uni-directional)
11.1V to 95.83V standard zener breakdown voltage range (bi-directional)
400W at 1ms peak power
40A forward surge current
-65°C to +150°C operating temperature range

<1ns typical response time
Flat handling surface for accurate placement
Package design for top slide or bottom circuit board mounting
Low-profile package
Lead-free
AEC−Q101 qualified and production part approval process (PPAP) capable
Recognized to UL 497B as an isolated loop circuit protector
RoHS compliant

Applications

Communication systems
Automotive
Numerical controls
Process controls

Medical equipment
Business machines
Power supplies

Littelfuse SZ1SMA 400W TVS Diodes

Features

Applications

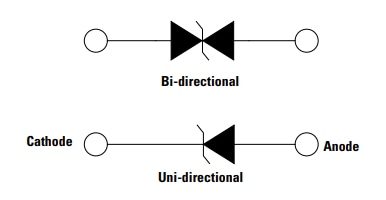

Functional Block Diagram
