Littelfuse Sx02xSx EV 1.5A Sensitive SCR Thyristors

Littelfuse Sx02xSx EV 1.5A Sensitive SCR (Silicon Controlled Rectifiers) Thyristors offer high static dv/dt noise immunity and a low turn-off time. Glass-passivated SCR junctions ensure long-term reliability and parametric stability. The unidirectional Sx02xSx thyristors are available in through-hole (TO-92) and surface-mount (SOT-89 and SOT-223) package styles. These 1.5A switching thyristors from Littelfuse are designed for solenoid drive applications such as GFCI and similar cut-off devices.

Features

>15A surge capability
Blocking voltage (V_DRM/V_RRM) capability up to 600V
High dv/dt noise immunity
<35µsec improved turn-off time (tq)
Sensitive gate for direct microprocessor interface
Unidirectional

Available package styles
- SOT-89, surface mount
- SOT-223, surface mount
- TO-92 (E package), through-hole
RoHS compliant and halogen-free

Specifications

DC gate trigger
- 15µA up to 200µA current (I_GT)
- 0.8V maximum voltage (V_GT)
Peak gate
- 1.0A maximum current (I_GM)
- 5V minimum reverse voltage (V_GRM)
On-state current
- 1.5A RMS (I_T(RMS)), full sine wave
- 0.95A average (I_T(AV))
- Non-repetitive surge peak (I_TSM)
  - 12.5A for the TO-92
  - 15.0A for the SOT-89 and SOT-223
- 50A/µs critical rate of the rise of IG = 10mA (di/dt)

0.1W average gate power dissipation (P_G(AV))
3mA to 5mA maximum holding current (I_H)
25V/µs minimum critical rate-of-rise of the off-state voltage [(dv/dt)s]
Time
- 35µs maximum turn-off (t_q)
- 3µs maximum turn-on (t_gt)
1.70V maximum peak on-state voltage (V_TM)
Junction temperature range
- -40°C to +150°C storage (T_stg)
- -40°C to +125°C operating (T_J)

Littelfuse Sx02xSx EV 1.5A Sensitive SCR Thyristors

Features

Specifications

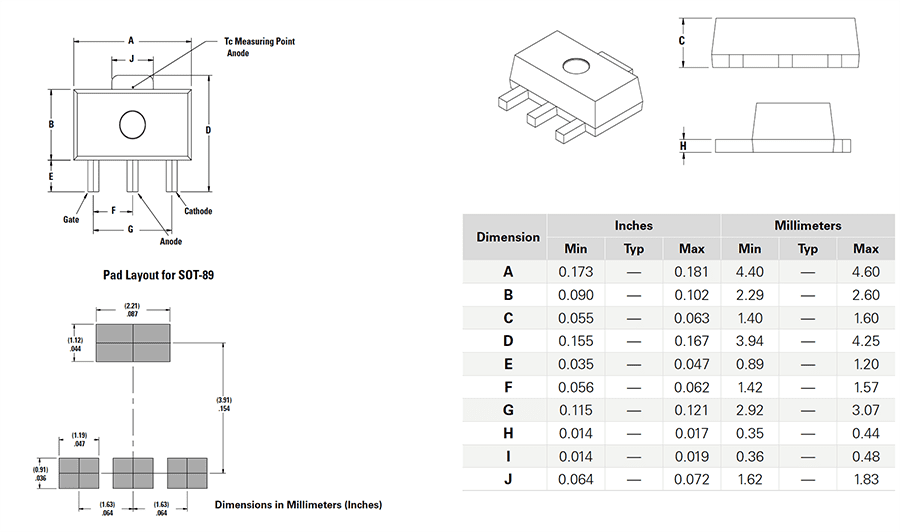

SOT-89 Package Outline

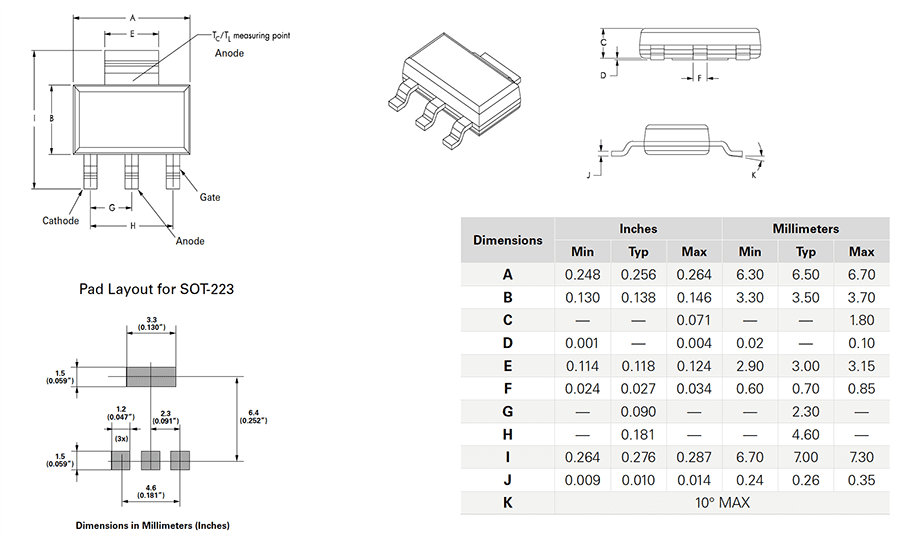

SOT-223 Package Outline

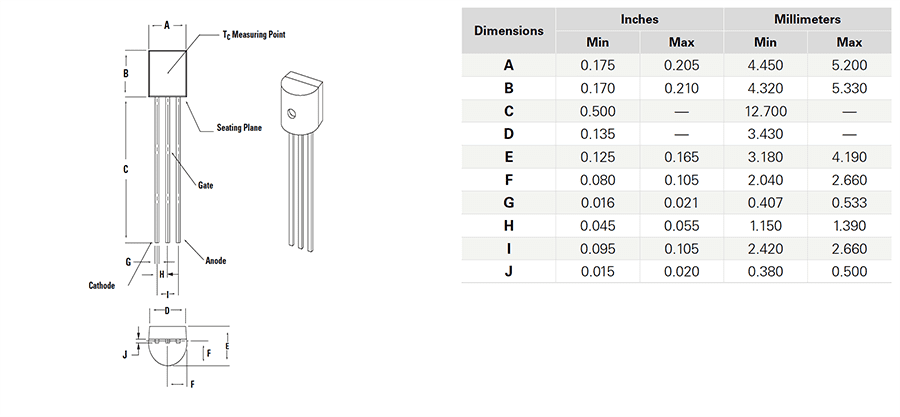

TO-92 Package Outline
