Littelfuse SV6050xAx 50A High-Junction Temperature SCRs

Littelfuse SV6050xAx 50A High-Junction Temperature SCRs are ideal for uni-directional switch applications such as phase controls, motor speed controls, Solid State Relays, and inrush current controllers. Standard phase control SCRs are triggered with a few milliamperes of current at less than 1.5V potential.

Features

Halogen-free and RoHS compliant
150°C maximum junction temperature
High dv/dt performance up to 1000V/µs

Surge capability up to 550A at 60Hz half cycle
AEC-Q101 qualified

Applications

AC solid-state switches
Phase controller
Rectifier

Voltage regulator
Inrush current limit circuit

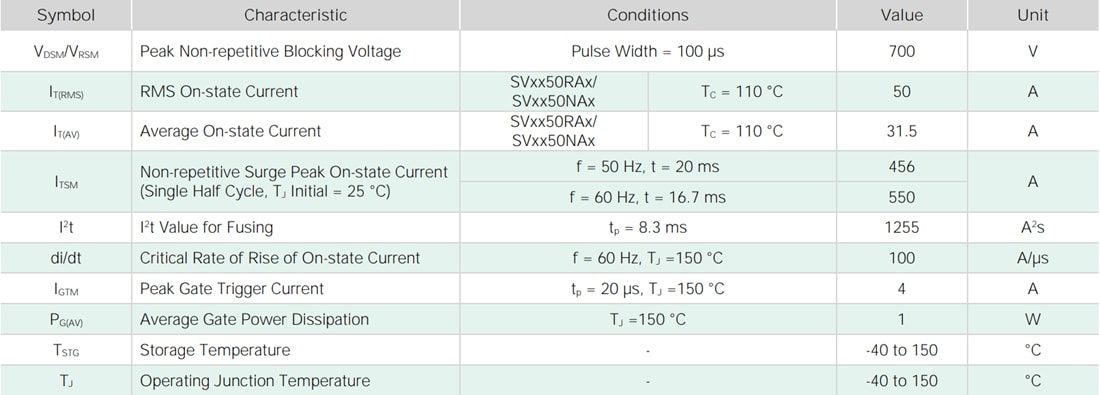

Maximum Ratings

Chart - Littelfuse SV6050xAx 50A High-Junction Temperature SCRs
