Littelfuse SPXI In-Line Solar Fuses

Littelfuse SPXI In-Line Solar Fuses are designed for the protection of photovoltaic (PV) systems. Littelfuse SPXI fuses integrate into an in-line assembly within a wire harness and can be electrically insulated by overmolding or using heat shrink. The series offers 1A to 60A current ratings to match specific requirements in a variety of applications.

Features

Offers higher amperage protection in less space for increased design flexibility
One-piece cap design, without joints, offers easier wire crimping and more streamlined molding

No fuse holder required allowing space and time savings along with added cost-effectiveness
50kA interrupting rating

Applications

PV high-capacity home run conductors
PV trunk harnesses
PV wire harnesses

Specifications

1500V_DC voltage rating
1A to 60A current rating
≤1ms time constant

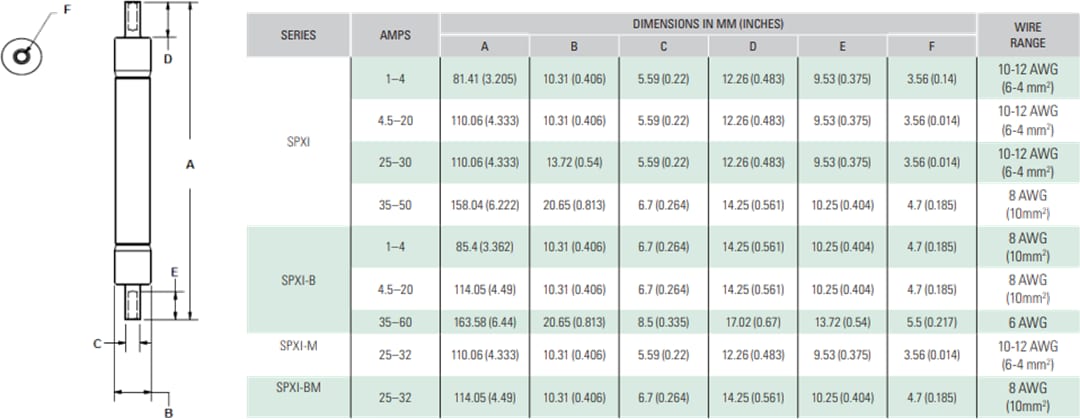

Dimensions

Littelfuse SPXI In-Line Solar Fuses
