Littelfuse SP4337 Bidirectional TVS Diode Arrays

Littelfuse SP4337 Bidirectional TVS Diode Arrays are designed to protect high-speed interfaces against electrostatic discharge (ESD), such as HDMI and DisplayPort interfaces, Thunderbolt, and USB 3.1 Gen 1. The signal line of the Littelfuse SP4337 is protected by a TVS diode offering a low line capacitance of 0.18pF (typical). SP4337 safely absorbs repetitive ESD strikes up to ±15kV contact exceeding IEC 61000-4-2, level 4 (±8kV contact discharge). These TVS diodes also provide low capacitance, high clamping capability, low leakage, and fast response times. These features make the SP4337 arrays ideal for protecting high-speed data lines.

Features

ESD, IEC 61000-4-2, ±15kV contact, ±15kV Air
EFT, IEC 61000-4-4, 40A (5/50ns)
Lightning, 7A (8/20 as defined in IEC 61000-4-5 2nd edition)

Low capacitance of 0.18pF (typical at V_R=0V)
Space-efficient 0201 package
Halogen-free, lead-free, and RoHS compliant

Applications

USB 3.1 Gen1
HDMI
DisplayPort
Thunderbolt

S-ATA
NFC
2.5G/5G/10G Ethernet

Specifications

7.0A peak current
-40°C to +125°C operating temperature range
5V reverse standoff voltage

7.8V breakdown voltage
1nA typical, 100nA maximum reverse leakage current
±15kV ESD withstand voltage

Littelfuse SP4337 Bidirectional TVS Diode Arrays

Features

Applications

Specifications

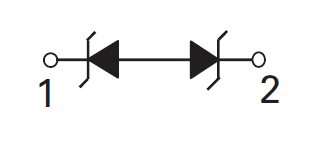

Functional Block Diagram
