Littelfuse SMF4L-T1G Low Leakage TVS Diodes

Littelfuse SMF4L-T1G Low Leakage Transient Voltage Suppressor (TVS) Diodes are designed to protect sensitive systems or components from high-voltage and high-energy transients. These diodes offer a fast response time of less than 1ns, low Zener impedance, high surge, and good clamping capabilities. The SMF4L-T1G TVS diode features a unidirectional peak reverse voltage ranging from 5V to 78V and a maximum peak power dissipation of 400W. The SMF4L-T1G low leakage diodes are ideal for protecting I/O interfaces, V_CC buses, and other vulnerable circuits used in cellular phones, portable electronics, and business machines. The low leakage is particularly well-suited for battery-operated electronics, power supplies, and other industrial and consumer applications.

Features

Zener transient overvoltage suppressors
Working peak reverse voltage range of 5V to 78V for unidirectional
400W peak power @ 1ms
385mW DC power dissipation @ (T_A=25°C)
Low leakage
Response time is typically <1ns
ESD rating of class 3 (>16kV) per human body model
-55°C to 150°C operating temperature range

IEC-61000-4-2 ESD 30kV (air) and 30kV (contact)
Electrical Fast Transients (EFT) rating of 40A per IEC 61000-4-4
Small footprint area of 8.45mm²
Supplied in 8mm tape and reel (3,000 units per reel)
Lead orientation in tape (cathode lead to sprocket holes)
Pb-free and RoHS compliant

Applications

Cellular phones
Portable electronics
Industrial
Consumer

Power supplies
Business machines
Battery-operated electronics

Littelfuse SMF4L-T1G Low Leakage TVS Diodes

Features

Applications

Functional Diagram

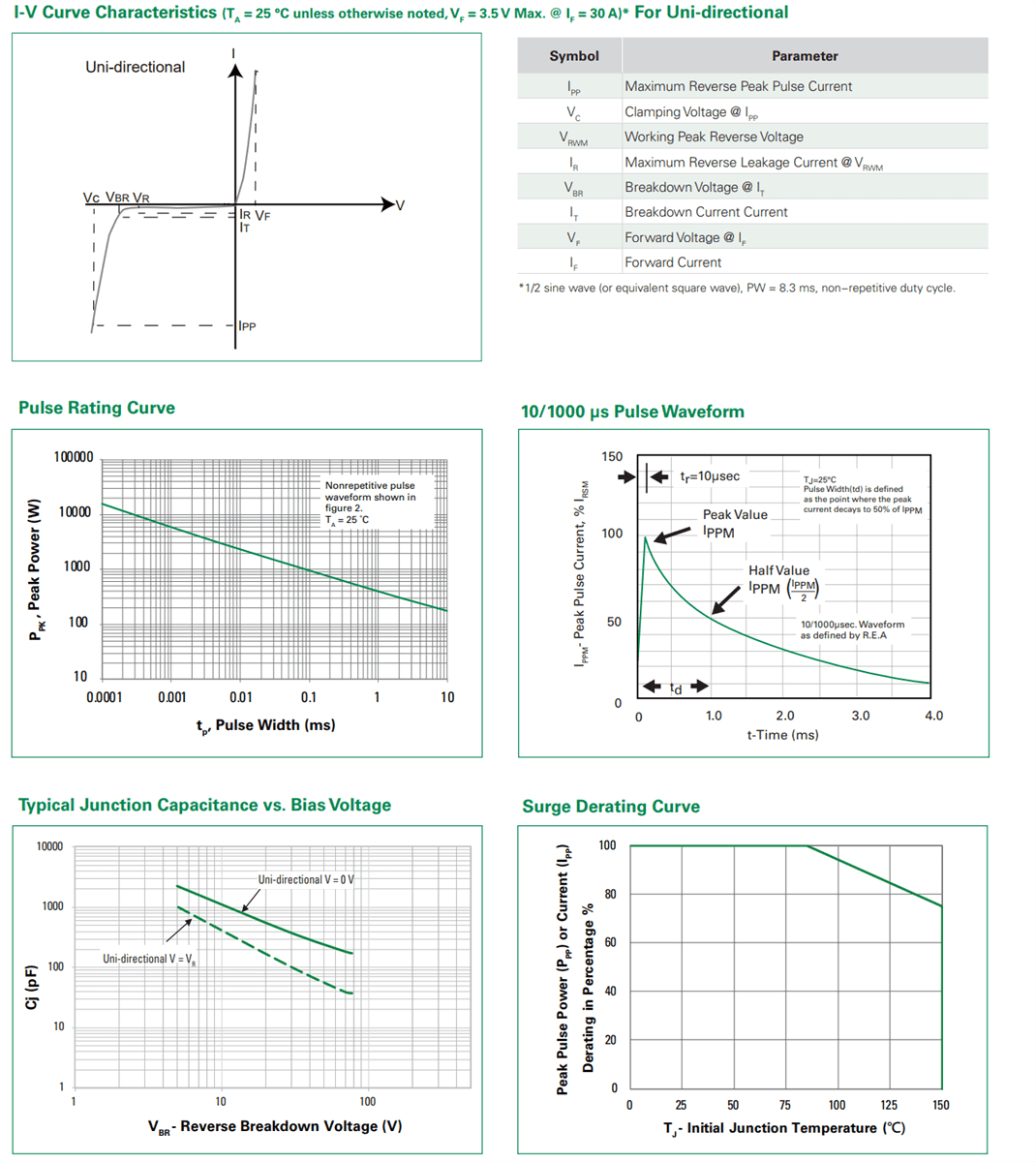

Performance Graphs

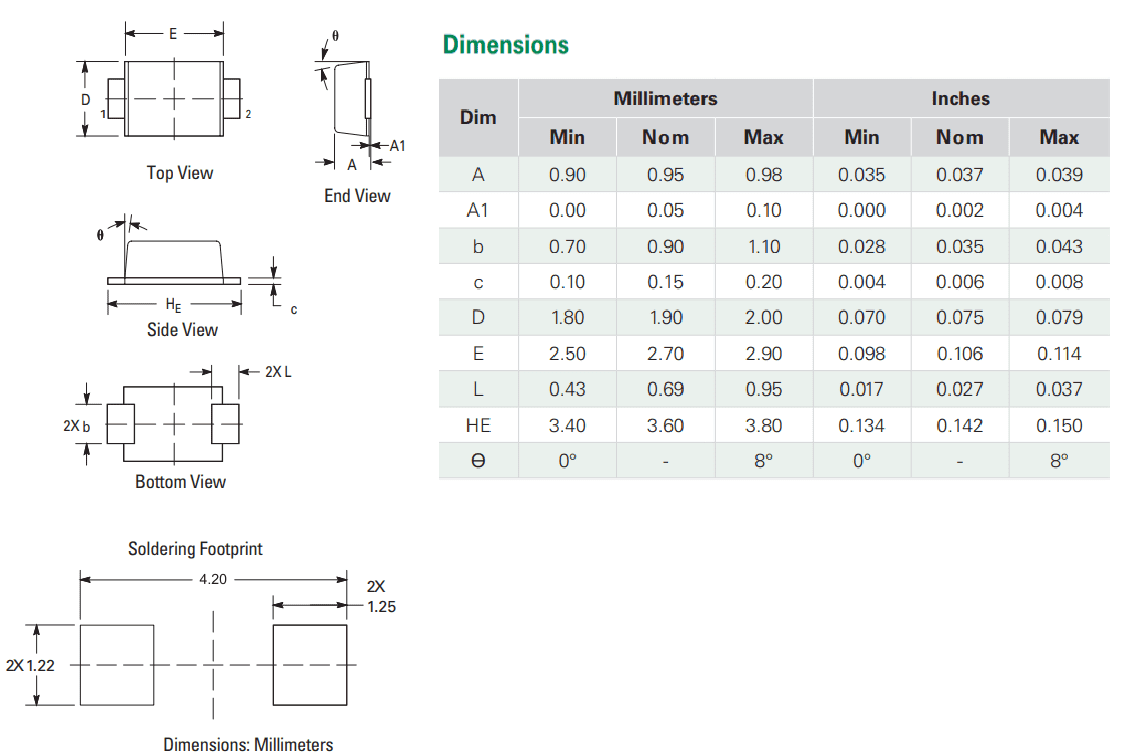

Dimensions Drawing
