Littelfuse SLD6S Automotive TVS Diodes

Littelfuse SLD6S Automotive TVS Diodes offer a 14V to 57V working voltage range, 50µA maximum reverse leakage rating, and 5mA test current. SLD6S diodes are AEC-Q101 qualified and feature low incremental surge resistance, excellent clamping capability, and a low profile package. These diodes are designed to protect sensitive electronics against ESD, EFT, 10/1000 surge events and inductive load switching voltage transient events. Littelfuse SLD6S Automotive TVS Diodes are ideal for severe automotive load dump applications.

Features

AEC-Q101 qualified
SMTO-263 package, and footprint is compatible to industrial popular DO218AB package
Meet ISO7637-2 5a/5b protection and ISO16750 load dump test
Glass passivated chip junction in modified TO263 package
ESD protection of data lines in accordance with IEC 61000-4-2, 30kV(Air), 30kV (Contact)
EFT protection of data lines in accordance with IEC 61000-4-4

Excellent clamping capability
Low incremental surge resistance
UL Recognized compound meeting flammability rating V-0
Low profile package
Matte tin lead–free plated
Halogen-free and RoHS compliant

Littelfuse SLD6S Automotive TVS Diodes

Features

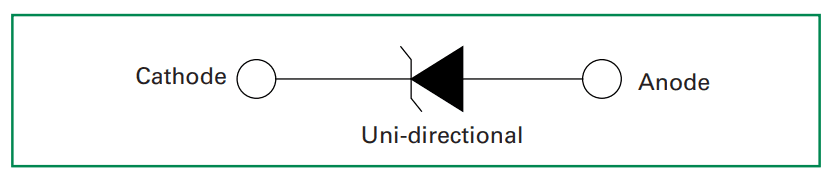

Functional Diagram

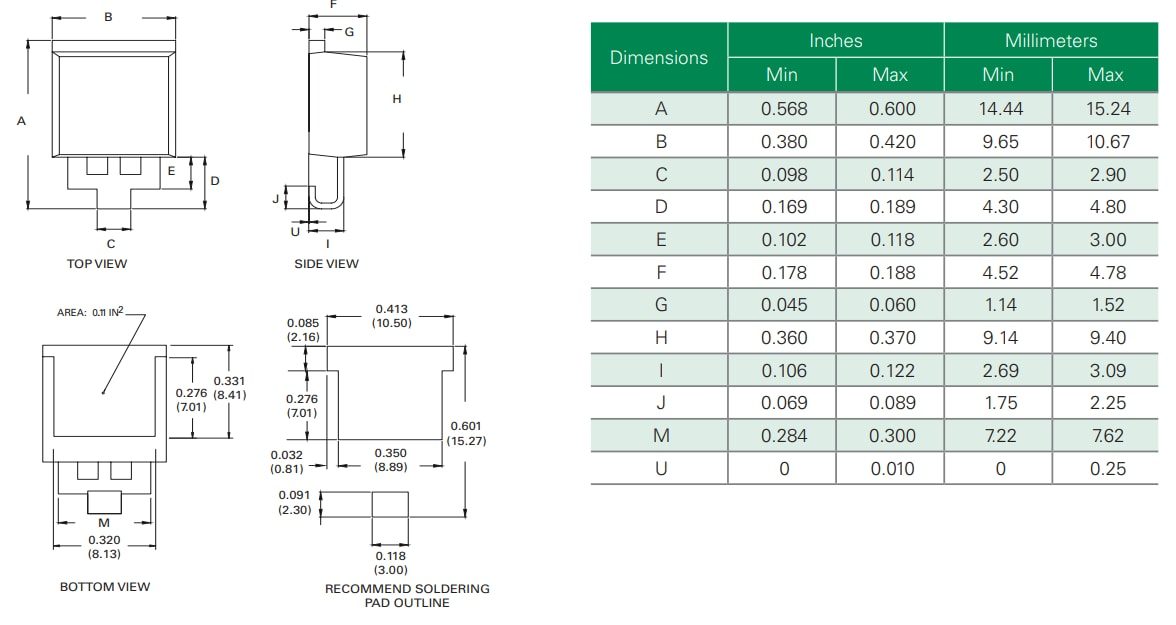

Dimensions
