Littelfuse SJxA 32A/40A Automotive-Grade SCR Thyristors

Littelfuse SJxA 32A/40A Automotive-Grade SCR Thyristors are high-temperature devices ideal for uni-directional switch applications such as phase control in heating, motor speed controls, and AC rectifier/voltage regulators. The SJxA SCRs offer low gate current trigger levels of 15mA or 40mA at approximately 1.5V, voltage capability up to 600V, and surge capability up to 380A (32A devices) or 520A (40A components) at 60Hz half-cycle. Typical applications are AC rectifier, voltage regulator, AC solid-state switches, industrial power tools, exercise equipment, white goods, and commercial appliances.

Features

High junction temperature
Voltage capability up to 600V
Surge capability up to 380A (32A versions) or 520A (40A versions) at 60Hz half cycle
Recognized to UL 1557 as an Electrically Isolated Semiconductor Device (40A versions only)

Package options
- TO-220 isolated or non-isolated
- TO-263 (D² Pak)
AEC-Q101 qualified
Halogen-free and RoHS compliant

Applications

AC rectifiers
Voltage regulators
AC solid-state switches
Industrial power tools

Exercise equipment
White goods
Commercial appliances

Specifications

700V peak non-repetitive blocking voltage
On-state currents
- 32A or 40A RMS
- 20A or 25.0A average
Peak non-repetitive surge currents
- 320A or 430A at 50Hz
- 380A or 520A at 60Hz

150A/µs critical rate of rise of on-state current
4A peak gate current
1W average gate power dissipation
15mA or 40mA gate sensitivity
-40°C to +150°C temperature range
100% matte tin-plated terminal finish
Copper alloy lead material

Littelfuse SJxA 32A/40A Automotive-Grade SCR Thyristors

Features

Applications

Specifications

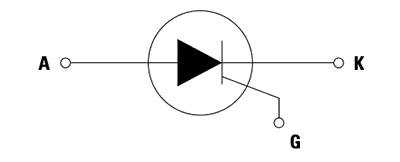

Schematic
