Littelfuse SC7520/AQ7520 SPA® TVS Diode Arrays

Littelfuse SC7520 and AQ7520 (Automotive-Grade) SPA® TVS Diode Arrays include eight-channel ultra-low capacitance and high-level ESD protection diodes to protect high-speed data rates such as USB 3.1, DisplayPort, and e-SATA. A typical capacitance of 0.32pF helps ensure signal integrity. These robust devices can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8kV contact discharge) without performance degradation and safely dissipate 6A of 8/20μs surge current (IEC 61000-4-5 2nd edition).

Features

µDFN-9 package, 3.8mm x 1.0mm
ESD
- IEC 61000-4-2, ±12kV contact, ±15kV air
- ISO 10605, 330pF, 330Ω, ±12kV contact/air (AQ7520 only)
EFT, IEC 61000-4-4, 40A (5/50ns)
6A maximum surge tolerance, IEC 61000-4-5 2nd editions

Low 0.32pF capacitance at 1.5V (typical)
Low 0.02µA leakage current at 3.3V (typical)
Low operating and clamping voltage
Moisture sensitivity level (MSL) 1
Lead-free, Halogen-free, and RoHS compliant
AEC-Q101 qualified and PPAP capable (AQ7520 only)

Applications

V-by-One
Embedded display ports
USB 2.0, 3.0, and 3.1 ports
Flat-panel displays

LCD/LED TVs
Smartphones
Mobile computing
Automotive (AQ7520 only)

Specifications

6.0A maximum peak current
3.3V maximum reverse standoff voltage
8.5V typical breakdown voltage, 6.5V minimum
0.02µA typical reverse leakage current, 0.1µA maximum
1.7V typical holding voltage
2.7V to 4.0V typical clamp voltage range
0.24Ω typical dynamic resistance

0.32pF typical diode capacitance, 0.4pF maximum
Temperature ranges
- -40°C to +125°C operating
- -55°C to +150°C storage
Materials
- Matte tin-plated, copper alloy leads
- Silicon substrate
- UL 94V-0 molded compound body

Littelfuse SC7520/AQ7520 SPA® TVS Diode Arrays

Features

Applications

Specifications

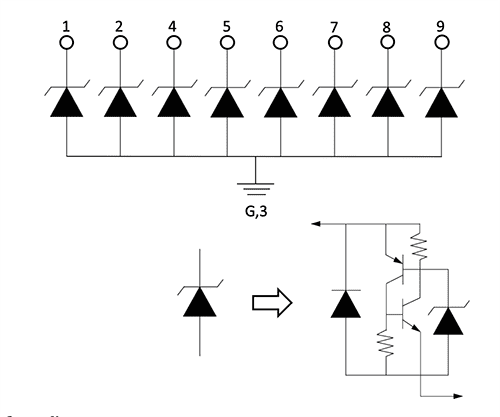

Block Diagram
