Littelfuse QVxx25xHx High-Temperature Alternistor TRIACs

Littelfuse QVxx25xHx High-Temperature Alternistor TRIACs are 25A TRIACs that enable easy thermal management and high surge handling capability in AC power control applications. These TRIACs feature 150°C maximum junction temperature (Tj) and 250A I_TSM(60Hz half cycle) surge capability, high dv/dt up to 2000V/μs, and 800V voltage capability. The QVxx25xHx TRIACs are available in TO-220AB, TO-220 isolated, and TO-263 packages. These TRIACs are RoHS compliant and are recognized to UL 1557 as electrically isolated semiconductor devices. The QVxx25xHx TRIACs are used in heater control, motor speed control, lighting control, and static switching relay applications.

Features

150°C maximum junction temperature
Up to 2000V/μs high dv/dt
800V voltage capability
250A surge capability at 60Hz half cycle
Mechanically and thermally robust TO-220 clip-attach assembly

Internally isolated TO-220 package
Recognized to UL 1557 as electrically isolated semiconductor devices
Halogen-free
RoHS compliant

Applications

Heater controls:
- Coffee brewers
- Tankless water heaters
- Infrared heaters
AC solid-state relays
Light dimmers, including incandescent and LED lighting

Motor speed controls:
- Kitchen appliance
- Power tools
- Home/brow/white goods
Compressor motor controls

Littelfuse QVxx25xHx High-Temperature Alternistor TRIACs

Features

Applications

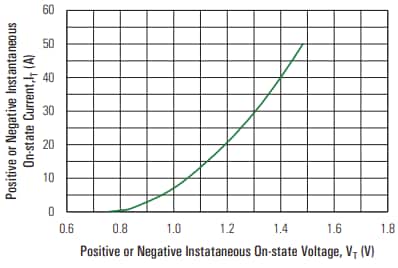

On-State Current vs On-State Voltage (Typical)

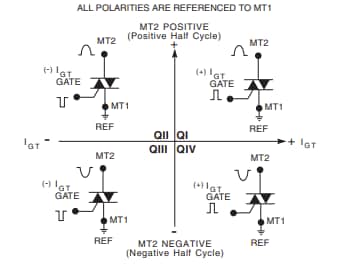

Quadrants
