Littelfuse QVxx12xHx 12A High-Temperature Alternistor Triacs

Littelfuse QVxx12xHx 12A High-Temperature Alternistor Triacs offer a +150°C maximum junction temperature (TJ) and a surge capability of 153A at 60Hz half cycle. These modules enable easier thermal management and higher surge handling capability in AC power control applications. The alternistor triacs operate in quadrants I, II, and III, and deliver high performance in applications requiring high commutation capability. The series features a 600V voltage capability, high dv/dt up to 1000V/µs, and RoHS compliance. Package options include TO-220AB, TO-220 isolated, and TO-263 packages. Applications for Littelfuse QVxx12xHx 12A alternistor triacs are heater control, motor speed control, lighting controls, and static switching relays.

Features

High operating TJ of +150°C
Surge capability of 153A at 60Hz half cycle
600V voltage capability
High dv/dt up to 1000V/µs
TO-220AB, TO-220 isolated, and TO-263 package options

Mechanically and thermally robust TO-220 clip-attach assembly
Internally isolated TO-220 package
Halogen free and RoHS compliant

Applications

Heater control such as coffee brewers, tankless water heaters, and infrared heaters
AC solid-state relays
Light dimmers, including incandescent and LED lighting

Motor speed control in kitchen appliances, power tools, home / brown / white goods
Light industrial such as compressor motor control

Littelfuse QVxx12xHx 12A High-Temperature Alternistor Triacs

Features

Applications

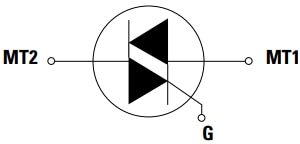

Schematic Symbol

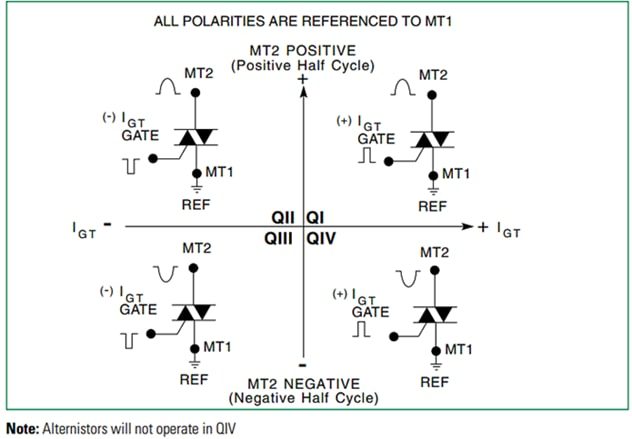

Quadrants
