Littelfuse QJxx35xH4 35A Alternistor TRIACs

Littelfuse QJxx35xH4 35A Alternistor TRIACs are TRIACs with 150°C maximum junction temperature and surge capability of 350A ITSM at 60Hz. These TRIACs in the I, II, and III quadrants offer high performance in applications requiring high commutation capability. The QJxx35xH4 TRIACs feature a voltage capability of up to 800V and are electrically isolated for 2500V_RMS. These TRIACs are RoHS-compliant, halogen-free, and available in TO-220 isolated packages. The QJxx35xH4 TRIACs enable easier thermal management and higher surge handling capability in AC power control applications. Typical applications include heater control, AC sold-state relays, light dimmers, and motor speed control.

Features

35A I_T(RMS)(T_C=80°C or T_C=110°C)
150°C maximum junction temperature
Surge capability of 350A I_TSM at 60Hz half cycle
Operate in I, II, and III in quadrants
Up to 800V voltage capability

Electrically isolated for 2500V_RMS
Mechanically and thermally robust TO-220 clip-attach assembly
Halogen-free
RoHS compliant

Applications

Heater control:
- Coffee brewer
- Tankless water heater
- Infrared heater
AC solid-state relays
Light dimmers including incandescent and LED lighting

Motor speed control:
- Kitchen appliances
- Power tools
- Home brow/white goods
- Compressor motor control

Littelfuse QJxx35xH4 35A Alternistor TRIACs

Features

Applications

Schematic Symbol

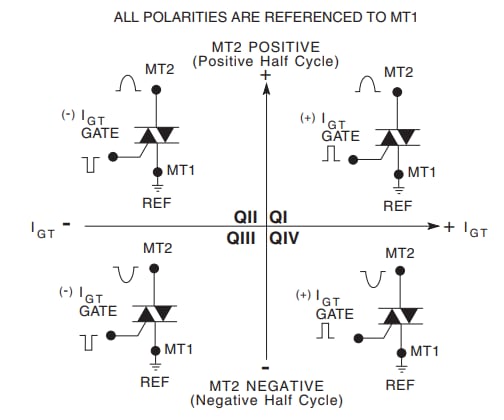

Quadrants Definition
