Littelfuse QJxx30xH4 30A Alternistor TRIACs

Littelfuse QJxx30xH4 30A Alternistor TRIACs are TRIACs with 50°C maximum junction temperature and 350A ITSM at 60Hz half cycle. These TRIACs in the I, II, and III quadrants offer high performance in applications that require high commutation capability. The QJxx30xH4 TRIACs feature up to 800V voltage capability and are electrically isolated for 2500V_RMS. These TRIACs are halogen-free, RoHS compliant, and are available in TO-220 isolated packages. The QJxx30xH4 TRIACs enable easier thermal management and higher surge handling capability in AC power control applications. Typical applications include heater control, AC sold-state relays, light dimmers, and motor speed control.

Features

150°C maximum junction temperature
Surge capability of 350A I_TSM at 60Hz half cycle
Up to 800V voltage capability
Electrically isolated for 2500V_RMS

Mechanically and thermally robust TO-220 clip-attach assembly
Halogen-free
RoHS compliant

Applications

Heater control:
- Coffee brewer
- Tankless water heater
- Infrared heater
AC solid-state relays
Light dimmers including incandescent and LED lighting

Motor speed control:
- Kitchen appliances
- Power tools
- Home brow/white goods
- Compressor motor control

Littelfuse QJxx30xH4 30A Alternistor TRIACs

Features

Applications

Schematic Symbol

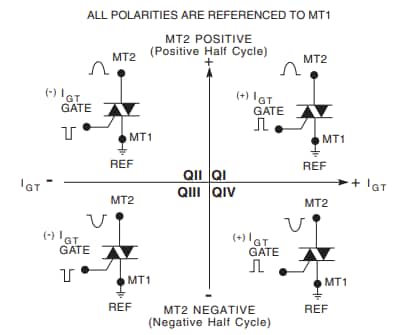

Quadrants Definition
