Littelfuse QJxx25xHx Alternistor Triac Thyristors

Littelfuse QJxx25xHx Thyristors are 25A alternistor triac solid-state switches designed for AC switching and phase control applications. These TRIACs are suitable for applications such as motor speed control, temperature modulation controls, lighting controls, and static switching relays. Littelfuse QJxx25xHx Thyristors only operate in Quadrants I, II, and III and are used in circuits requiring high dv/dt capability.

Features

Up to 600V voltage capability
250A surge capability at 60Hz half cycle

Halogen-free and RoHS-compliant
Recognized to UL 1557 as an electrically isolated semiconductor device

Applications

AC Switching
Phase control
Heating
Lighting
Motor speed controls
AC solid-state switches

Industrial power tools
Exercise equipment
White goods
Commercial appliances
Applications with high inductive loads

Specifications

25A I_T(RMS)
400V, 600V, or 800V V_DRM/V_RRM
35mA to 85mA I_GT

Packages
- TO-220R
- TO-220L
- TO-263 D²-Pak
- TO-218X
- TO-218AC

Littelfuse QJxx25xHx Alternistor Triac Thyristors

Features

Applications

Specifications

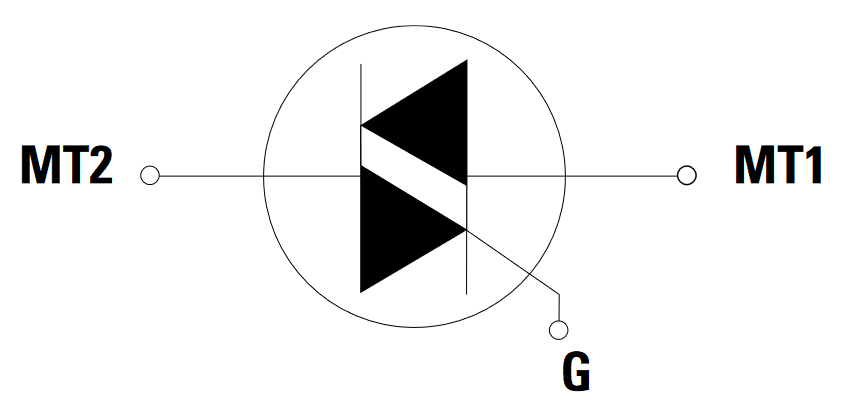

Schematic Symbol
