Littelfuse PPG & PPG-J Thin-Film Platinum RTD Sensors

Littelfuse PPG and PPG-J Thin-Film Platinum Resistance Temperature Detectors (Pt-RTDs) are temperature sensors capable of withstanding temperatures ranging from -50°C to +500°C. Littelfuse PPG and PPG-J Thin-Film Platinum RTD Sensors consist of a passivated thin-film platinum element deposited on a ceramic substrate and cost-effective compared to when compared to wirewound platinum resistance temperature detectors. The sensors allow resistance and temperature deviation to be controlled to within ±0.06% and ±0.15°C. This tolerance corresponds to Class A of IEC 751 or ½ DIN of DIN 43760.

Features

Glass-coated platinum element
Virtually linear relationship between temperature and resistance
Capable of withstanding temperatures ranging from -50°C to +500°C
Excellent stability even at high temperatures
High accuracy
- Resistance and temperature deviation can be controlled to within ±0.06% and ±0.15°C, a tolerance that corresponds to Class A of IEC 751 or ½ DIN of DIN 43760

EN 60751 (Class A products only)
High reliability
- Capable of withstanding extreme environmental conditions
Available in various configurations for specific applications
Platinum-clad Nickel lead wire (PPG-J)

Applications

Measurement and control
Harsh environments

Littelfuse PPG & PPG-J Thin-Film Platinum RTD Sensors

Features

Applications

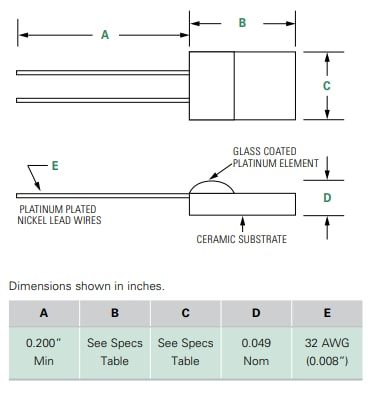

Dimensions
