Littelfuse LPF Series Pulse-Guard® ESD Suppressors

Littelfuse LPF Series Pulse-Guard^® ESD Suppressors are common mode noise filters designed to meet the specifications of the high-speed differential serial interface. The ESD suppressors feature ultra-small size, ceramic-based SMD components, and non-polarizing products. These suppressors deliver 10MΩ minimum insulation resistance and up to 80mA maximum rated current. The ESD suppressors offer high voltage and are RoHS compliant. Typical applications include mobile phones, tablets, portable/wearable devices, and other consumer devices.

Features

Effective for suppressing common mode noise
No effect for highspeed differential data line
Ceramic-based SMD component
Non-polarized product

High voltage
RoHS compliant
Ultra-small size

Specifications

Common mode impedance:
- 25Ω (LPF090703A250TG)
- 35Ω (LPF090703A350TG)
Maximum DC resistance:
- 5Ω (LPF090703A250TG)
- 8Ω (LPF090703A350TG)
10MΩ minimum insulation resistance

Maximum rated current:
- 80mA (LPF090703A250TG)
- 70mA (LPF090703A350TG)
-40°C to 85°C operating temperature range
0.90mm X 0.68mm X 0.45mm dimensions

Applications

Mobile phones
Tablets

Portable/wearable devices
Other consumer devices

Littelfuse LPF Series Pulse-Guard® ESD Suppressors

Features

Specifications

Applications

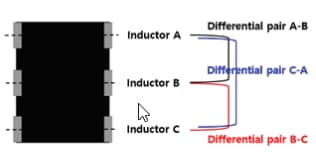

Circuit Diagram

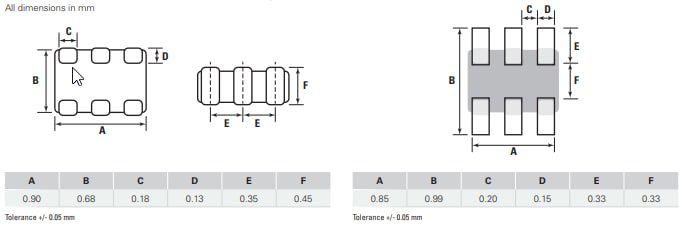

Dimension Diagram
