Littelfuse CPC3981Z 800V, 45Ω N-Channel MOSFET

Littelfuse CPC3981Z 800V, 45Ω N-Channel MOSFET is an 800V depletion-mode FET in a modified SOT-223 package to provide greater separation of the drain and source leads for high-voltage applications. Littelfuse CPC3981Z is a robust MOSFET ideal for solid-state relays in power, industrial, and telecommunications applications. Littelfuse CPC3981Z N-Channel MOSFET comes in a SOT-223-2L package and features high input impedance and a -55°C to +150°C ambient operating temperature range.

Features

800V breakdown voltage
45Ω on-resistance
-1.4V to -3.1V VGS (off)

+150°C T_J (maximum)
High input impedance

Applications

Normally on switches
Solid-state relays
Converters

Telecommunications
Power supplies
Current regulators

Specifications

150mA pulsed drain current
2.25W total package dissipation
±15V gate-to-source voltage

800V drain-to-source voltage
-55°C to +150°C ambient operating temperature
+150°C maximum junction temperature

Littelfuse CPC3981Z 800V, 45Ω N-Channel MOSFET

Features

Applications

Specifications

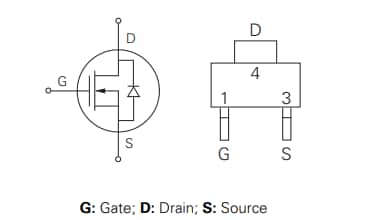

Pinout Diagram
