Littelfuse AQW05/SDW05-01FTG Unidirectional TVS Diodes

Littelfuse AQW05/SDW05-01FTG Unidirectional Transient Voltage Suppressor (TVS) Diodes are fabricated in a proprietary silicon avalanche technology. These TVS diodes provide a high Electrostatic Discharge (ESD) protection level for electronic equipment. The AQW05/SDW05-01FTG unidirectional TVS diodes absorb repetitive ESD strikes of ±30kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. These diodes feature a 30A peak current (I_PP), 6V minimum breakdown voltage, and 5V maximum reverse standoff voltage. Typical applications include battery protection, computer peripherals, medical equipment, notebooks/desktops/servers, point-of-sale terminals, switches/buttons, and test equipment/instrumentation.

Features

30A peak current I_PP (t_p=8/20μs)
6V minimum breakdown voltage
5V maximum reverse standoff voltage
±30kV ESD withstand voltage, IEC 61000-4-2 (contact/air)
EFT, IEC 61000-4-4, and 40A (5/50ns)
Maximum surge tolerance, IEC 61000- 4-5 2^nd Edition, 30A (8/20μs)

Clamp voltage:
- 7V typical (I_PP=1A, t_p=8/20μs, and I/O to GND)
- 13A typical (I_PP=30A, t_p=8/20μs, and I/O to GND)
Halogen-free, lead-free, and RoHS-compliant
Moisture Sensitivity Level (MSL-1)
AEC-Q101 qualified and PPAP capable (AQW05-01FTG)

Applications

Battery protection
Computer peripherals
Medical equipment

Notebooks/desktops/servers
Point-of-sale terminals
Switches/buttons
Test equipment/instrumentation

Littelfuse AQW05/SDW05-01FTG Unidirectional TVS Diodes

Features

Applications

Block Diagram

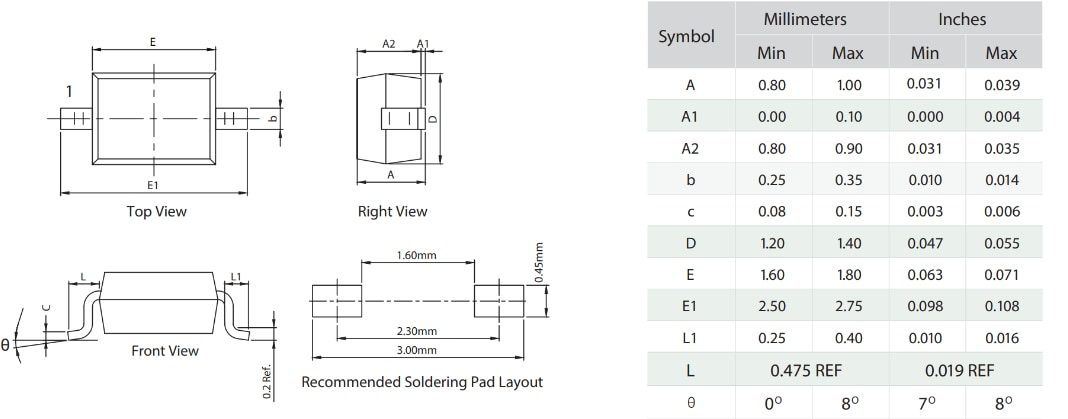

Dimension Diagram
