Littelfuse AQ7538-08UTG 0.3pF TVS Diode Arrays

Littelfuse AQ7538-08UTG 0.3pF TVS Diode Arrays integrate eight channels of ultra-low capacitance rail-to-rail diodes and an additional Zener diode for protecting electronic equipment from electrostatic discharge (ESD). The Littelfuse AQ7538-08UTG is AEC-Q101 qualified and PPAP capable. These TVS diode arrays safely absorb repetitive ESD strikes above the maximum level, ±8kV contact discharge, as specified in the international standard IEC 61000-4-2, without performance degradation (±8kV contact discharge). The low loading capacitance also makes the series ideal for protecting high-speed signal pins, such as V-by-One, HDMI, USB3.0, USB3.1, USB2.0, and IEEE 1394.

Features

ESD, IEC 61000-4-2, ±22kV contact, ±30kV air
ESD, ISO 10605, 330pF 330Ω, +30kV/-18kV contact, +30kV/-18kV air
EFT, IEC 61000-4-4, 40A (tP=5/50ns)
Surge tolerance, IEC 61000-4-5 2nd edition, 3A (t_P=8/20μs)
0.3pF at 0V capacitance, 3GHz (typical) per I/O

0.5μA leakage current (maximum) at 5V
Halogen-free, lead-free ,and RoHS compliant
Moisture sensitivity level(MSL -1)
AEC-Q101 qualified and PPAP capable

Applications

V-by-One
Embedded DisplayPort
USB 2.0/3.0/3.1 ports
HDMI
Flat-panel displays

LCD/LED TVs
Smartphones
Mobile computing
Automotive

Specifications

3.0A peak current
5V reverse standoff voltage

6V breakdown voltage
-40°C to +150°C operating temperature range

Littelfuse AQ7538-08UTG 0.3pF TVS Diode Arrays

Features

Applications

Specifications

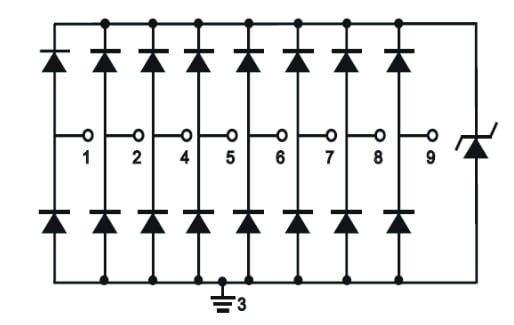

Block Diagram
