Littelfuse AQ24COME-02HTG Bidirectional TVS Diode

Littelfuse AQ24COME-02HTG Bidirectional TVS Diode provides a high Electrostatic Discharge (ESD) protection level for electronic equipment. This TVS diode can safely absorb repetitive ESD strikes of ±30kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. The AQ24COME-02HTG TVS diode safely dissipates a 9A 8/20μs surge current (IEC 61000-4-5, 2nd edition) and is fabricated in a proprietary silicon avalanche technology. This TVS diode operates from -40°C to 150°C temperature range. Typical applications include automotive, ADAS control units, body control units, CAN bus, factory automation, lighting control (DALI), power train control units, and sensor protection.

Features

ESD, IEC 61000-4-2, ±30kV contact/air
ESD, ISO 10605, 330pF 330Ω, ±30kV contact/air
EFT, IEC 61000-4-4, 40A (5/50ns)
Maximum surge tolerance, IEC 61000- 4-5 2nd Edition, 9A (8/20μs)

Halogen-free, lead-free, and RoHS compliant
Moisture Sensitivity Level (MSL-1)
AEC-Q101 qualified and PPAP capable
-40°C to 150°C operating temperature range

Applications

Automotive
ADAS control units
Body control units
CAN bus
Electronic control units

Factory automation
Lighting control (DALI)
Power train control units
Sensor protection

Littelfuse AQ24COME-02HTG Bidirectional TVS Diode

Features

Applications

Block Diagram

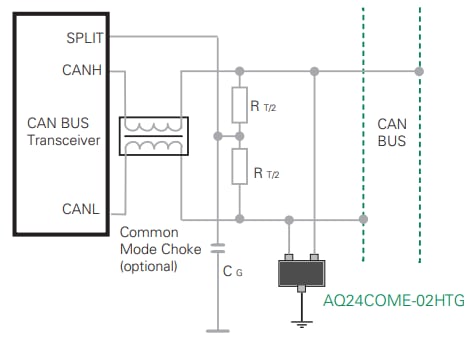

Application Circuit Diagram

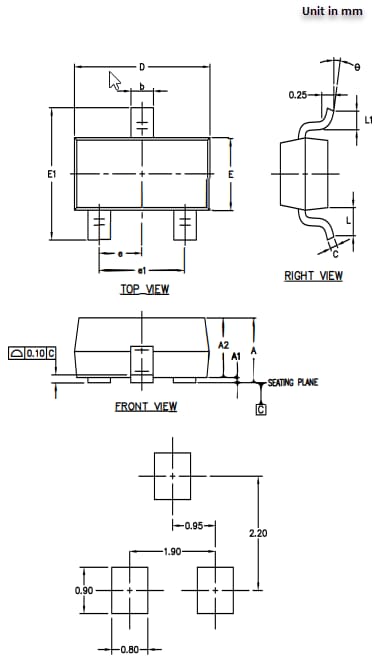

Dimension Diagram
