Littelfuse AQ1205-01FTG Bidirectional Discrete TVS Diode

Littelfuse AQ1205-01FTG Bidirectional Discrete TVS Diode safely dissipates a 7A 8/20μs surge event and offers 7pF typical capacitance. This diode features proprietary silicon avalanche technology and provides electrostatic discharge (ESD) protection for electronic equipment. The module safely absorbs repetitive ESD strikes of ±30kV without performance degradation (contact/air discharge per IEC 61000-4-2). Additional features include low leakage current and low clamping voltage. Littelfuse AQ1205-01FTG Bidirectional Discrete TVS Diode is AEC-Q101 qualified, PPAP capable, halogen free, lead free, and RoHS compliant. Applications include automotive, battery protection, battery management systems (BMS), computer peripherals, medical equipment, switches / buttons, test equipment / instrumentation, and more.

Features

Provides general-purpose ESD protection
Fabricated in a proprietary silicon avalanche technology
Low leakage current

Low clamping voltage
AEC-Q101 qualified and PPAP capable
Halogen free, lead free, and RoHS compliant

Applications

Automotive
Battery protection
BMS
Computer peripherals
Medical equipment

Notebooks / desktops / servers
Point-of-sale terminals
Switches / buttons
Test equipment / instrumentation

Specifications

7A (8/20μs) maximum surge tolerance, IEC 61000-4-5, 2nd Edition
7pF typical diode capacitance
20nA (maximum) leakage current at 5V

ESD, IEC 61000-4-2, ±30kV contact/air
ESD, ISO10605 330pF 330Ω, ±30kV contact/air
EFT, IEC 61000-4-4, 40A (5/50ns)
Moisture sensitivity level (MSL) 1

Littelfuse AQ1205-01FTG Bidirectional Discrete TVS Diode

Features

Applications

Specifications

Functional Block Diagram

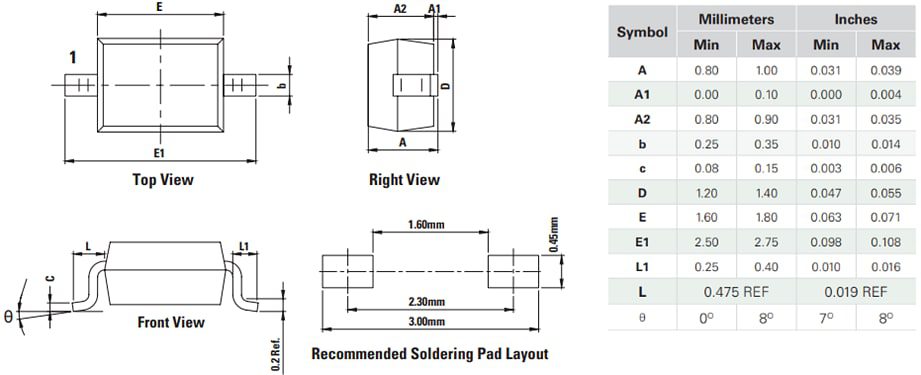

Dimensions
