Littelfuse 3.0SMCJ 3000W Surface Mount TVS Diodes

Littelfuse 3.0SMCJ 3000W Surface Mount TVS Diodes are designed to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. The series features 3000W peak pulse power capability in a low-profile package. Littelfuse 3.0SMCJ TVS Diodes are ideal for the protection of I/O interfaces, VCC bus, and other vulnerable circuits used in telecom, computer, industrial, and consumer electronic applications.

Features

3000W P_PPM peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
For surface mount applications in order to optimize board space
Low-profile package
Typical failure mode is short from over-specified voltage or current
Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
ESD protection of data lines in accordance with IEC 61000-4-2, 30kV (Air), 30kV (Contact)
EFT protection of data lines in accordance with IEC 61000-4-4
Built-in strain relief
Glass passivated chip junction
Less than 1.0ps typical response time from 0V to BV minimum

Excellent clamping capability
Low incremental surge resistance
+260°C/40sec high temperature to reflow soldering guaranteed
V_BR at T_J = V_BR at +25°C x (1 + αT x (T_J – 25)) (αT: Temperature Coefficient, typical value is 0.1%)
UL Recognized compound meeting flammability rating V-0
Meets MSL level 1, per J-STD-020, LF maximum peak of +260°C
Matte tin lead–free plated
Halogen-free and RoHS compliant
Lead-free E3 means 2nd level interconnect is lead-free and terminal finish material is tin (Sn) (IPC/JEDEC J-STD-609A.01)

Applications

Telecom
Computer

Industrial
Consumer electronics

Specifications

6.5W power dissipation
-65°C to +150°C operating temperature range

15°C/W typical thermal resistance junction to lead
75°C/W typical thermal resistance junction to ambient

Littelfuse 3.0SMCJ 3000W Surface Mount TVS Diodes

Features

Applications

Specifications

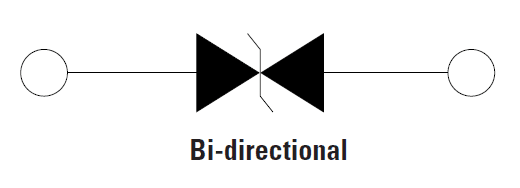

Functional Block Diagram
