Liquid Instruments Moku:Lab Reconfigurable Hardware Platforms

Liquid Instruments Moku:Lab Reconfigurable Hardware Platforms combine the digital signal processing power of an FPGA with versatile, low-noise analog inputs and outputs for engineering and research applications. Simplify workflows with access to either five or twelve instruments, depending on the model. Whether verifying an early design prototype or making advanced optical measurements, Moku:Lab enables end-to-end product measurements with a single device.

Features

Included in base bundle and full suite
- Waveform generator
- Spectrum analyzer
- Arbitrary waveform generator
- Oscilloscope
- Data logger

Full-suite only
- Lock-in amplifier
- PID controller
- Laser lock box
- MHz phasemeter
- Digital filter box
- Frequency response analyzer
- FIR filter builder

Applications

Pump-probe/ultrafast spectroscopy
Laser frequency stabilization (Pound-Drever-Hall technique and more)
Interferometry
Quantum optics

System response characterization
Noise measurement
Feedback and control system design
Impedance measurements
Data logging

Specifications

Analog inputs
- 2-channel
- 200MHz bandwidth (-3dB) into 50Ω
- 500MSa/s per channel
- 12-bit resolution
- 10V maximum into 50Ω with 20dB attenuation
- 50Ω/1MΩ input impedance
- AC/DC input coupling
- AC coupling corner (-3dB)
  - 100Hz into 50Ω
  - 30Hz into 1MΩ
- BNC connector
Analog outputs
- 2-channel
- >300MHz bandwidth (-3dB)
- 1GSa/s per channel sampling rate
- 16-bit resolution
- 2V into 50Ω
- 50Ω output impedance
- DC output coupling
- BNC connector
External trigger input
- TTL compatible trigger waveform
- DC to 5MHz trigger bandwidth
- Hi-Z trigger impedance
- 1.8V to 5V trigger level
- BNC connector
20W typical power consumption, 30W when charging the USB
100V to 240V power voltage range, 50/60Hz
ø8.66″ x 1.70″ in dimension
Kensington lock compatible

Clock reference
- Onboard clock
  - 10MHz frequency
  - <500ppb stability
- 10MHz reference input
  - Sine/square waveforms
  - 10MHz ±250kHz frequency
  - ±10dBm input range
  - BNC connector
- 10MHz reference output
  - Square waveform
  - 10MHz output frequency
  - -3dBm output level
  - BNC connector
Temperature ranges
- 0 to +45°C operating
- -10°C to +60°C storage
Connectivity
- 2x BNC analog inputs
- 2x BNC analog outputs
- Network
  - 10/100 Base-T Ethernet
  - Wi-Fi 802.11 b/g/n
- Micro-USB data port
- Type-A USB charge port
- 16GB class 10 SD card supplied
- 1x BNC external trigger input
- 1x BNC 10MHz clock reference input
- 1x BNC 10MHz clock reference output
- 12V_DC power module supplied

Liquid Instruments Moku:Lab Reconfigurable Hardware Platforms

Features

Applications

Specifications

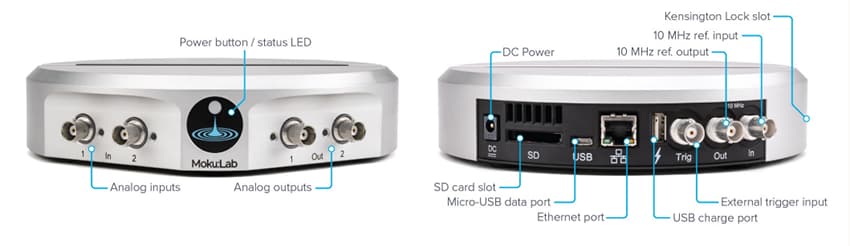

Diagram
