Linear Integrated Systems J500 Current Regulating Diodes

Linear Integrated Systems J500 Series Current Regulating Diodes are a direct replacement for the Siliconix-Vishay J500 series. With operation in a -55°C to +150°C junction temperature range, the J500 diodes offer a wide 0.192mA to 5.6mA current range and are ideal for current-limiting and constant-current applications. J500 diodes are available in the TO-92 2L RoHS package and bare die option.

Features

Replaces the Siliconix/Vishay J500 series
Wide 0.192mA to 5.6mA current range
Biasing not required
350mW maximum continuous power dissipation
20mA maximum forward current
50mA maximum reverse current
0.8V typical reverse voltage

2.2pF typical forward capacitance
50V peak operating voltage
0.3MΩ to 15MΩ typical dynamic impedance range
-55°C to +150°C junction operating temperature range
TO-92 package style
RoHS compliant

Applications

Current limiting applications
Constant-current applications

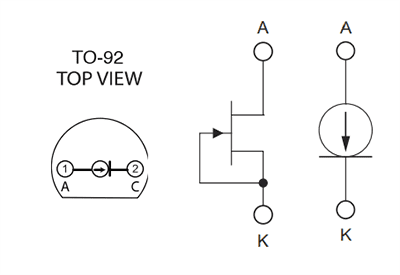

Linear Integrated Systems J500 Current Regulating Diodes
