Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses are ideal for general, wall-wash, and sports lighting. The LEILA-Y Lenses are offered with symmetric and asymmetric beams. LEILA-Y Lenses feature a thin holder design and are backward compatible with previous LEILA generations. The wall-washing beam is designed to be used in groups to provide uniform illumination with a typical installation distance from the wall of 10cm to 20cm and an optimal luminaire spacing of 5cm to 15cm.

The Ledil LEILA-Y Ø21.6mm LED Lenses are optimized for use with 3535 LED packages and are compatible with up to 5050 LED packages.

Features

  • 21.6mm diameter
  • 14.80mm height
  • 10° to 55° viewing angle
  • Symmetrical and asymmetrical beam options
  • Optimized for 3535 LED packages
  • Includes assembly with holder, installation tape, and pins
  • Backward compatible with previous LEILA generations
  • RoHS and REACH compliant

Applications

  • General lighting
  • Wall-wash
  • Sports lighting
  • Architectural lighting

Resources

  • Ledil LEILA-Y Family Datasheet
  • Mechanical Drawing
  • Installation Guide

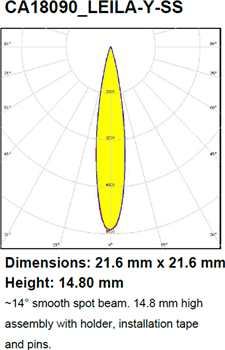

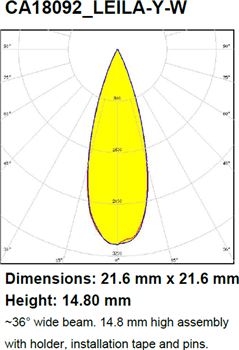

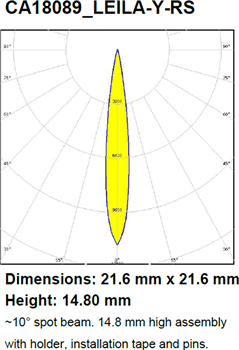

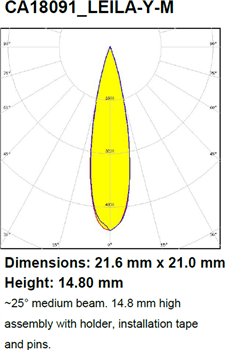

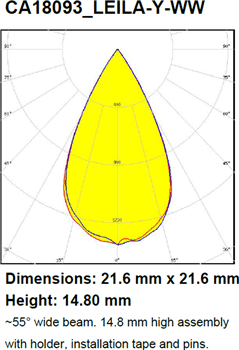

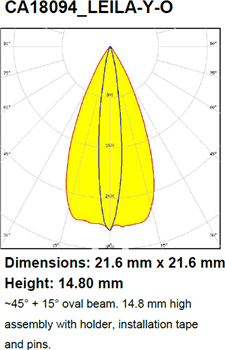

Beam Pattern Options

Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses

Ledil LEILA-Y Ø21.6mm LED Lenses
