Ledil ADELIA-75 LED Lighting Reflectors

LEDiL ADELIA-75 LED Lighting Reflectors are premium aluminum reflectors that combine stunning high-quality aesthetics with premium light quality. These reflectors include multiple sizes and from spot to extra wide beam angles. The ADELIA-75 LED lighting reflectors can take any track or downlight luminaires with a wide range of compatible connectors and LEDiL original accessories. Ideally, these lighting reflectors are used in retail and indoor architectural applications.

Features

  • Ø75mm variant optimized for Chip On Board (COB)
  • 14.5mm Light Emitting Surface (LES) size
  • 74.7mm dimension
  • 42.80mm height
  • RoHS compliant

Applications

  • Retail
  • Indoor architectural

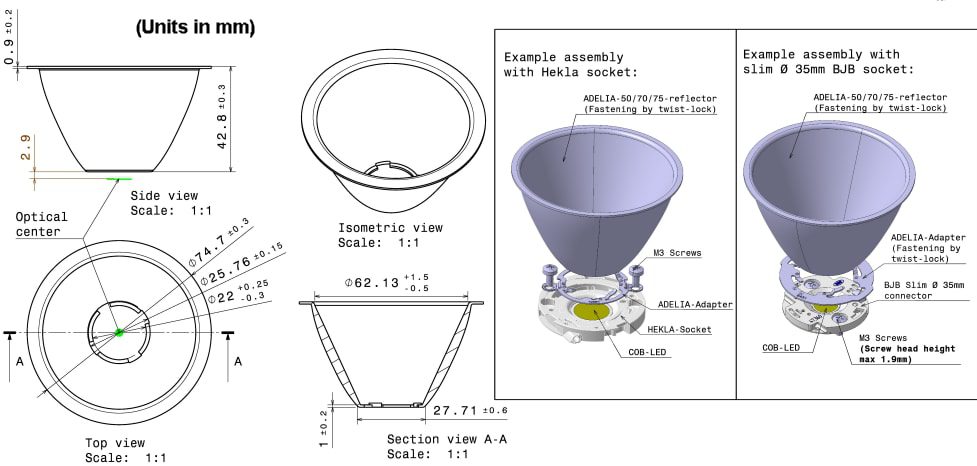

Mechanical Drawing

Mechanical Drawing - Ledil ADELIA-75 LED Lighting Reflectors

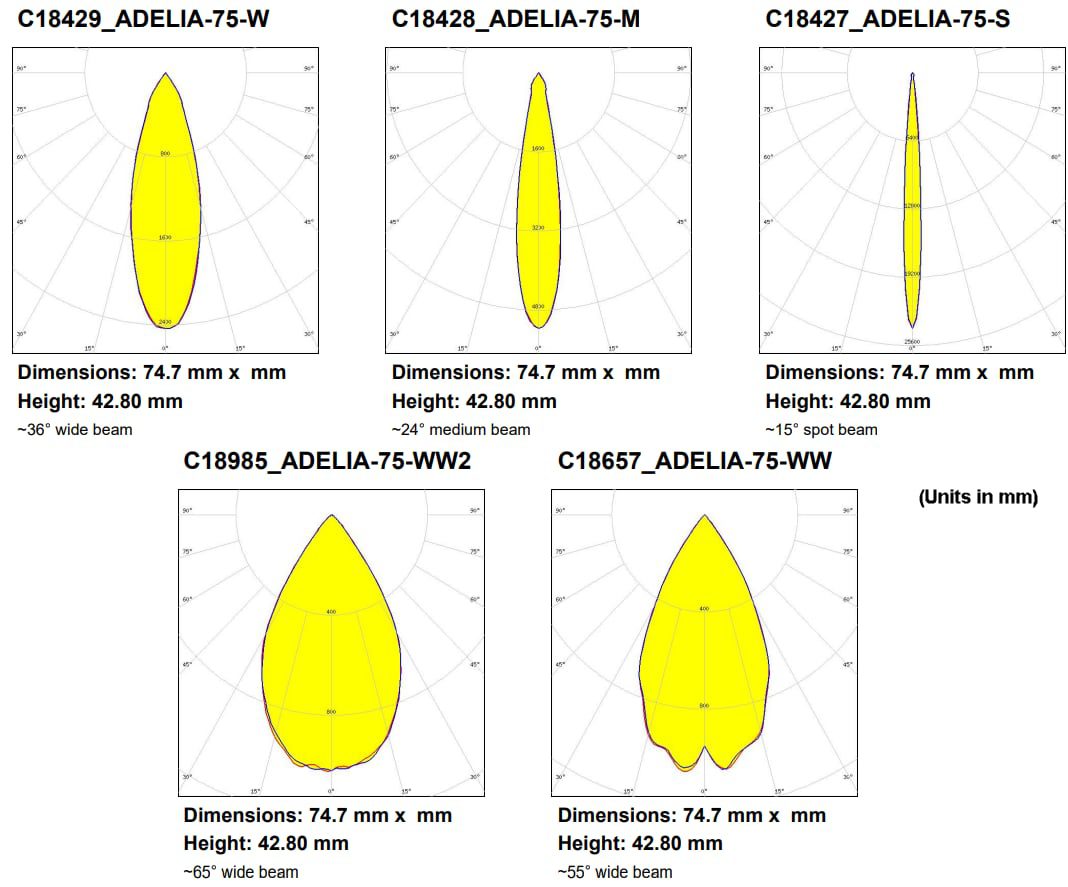

Dimensions Diagram

Ledil ADELIA-75 LED Lighting Reflectors

Ledil ADELIA-75 LED Lighting Reflectors
