Lattice Semiconductor LCMXO3D-PFR-EVN Sentry Demo Board

Lattice Semiconductor LCMXO3D-PFR-EVN Sentry Demo Board for MachXO3D is a single-board, system-level demo environment for the Lattice PFR system security solution. The MachXO3D Sentry Demo Board includes the MachXO3D LCMXO3D-9400HC-6BG484C CPLD and the ECP5 LFE5U-85F-8BG381C FPGA.

The Lattice Sentry Demo Board for MachXO3D demonstrates the Lattice PFR system security capability on a hardware platform controlled through a dedicated user interface on a PC workstation. The MachXO3D device authenticates the boot code of ECP5 (BMC) and ECP5 (PCH).

Features

Lattice Sentry Solutions Stack PFR demo support
Lattice Sentry system-level behavior validation
USB connection for device programming

Two ECP5 FPGA devices on-board with 256M SPI/QSPI flash devices to simulate protected external devices

Kit Contents

Lattice sentry demo board for MachXO3D
QuickStart guide

Power supply (12V)
USB cable for programming

Lattice Semiconductor LCMXO3D-PFR-EVN Sentry Demo Board

Features

Kit Contents

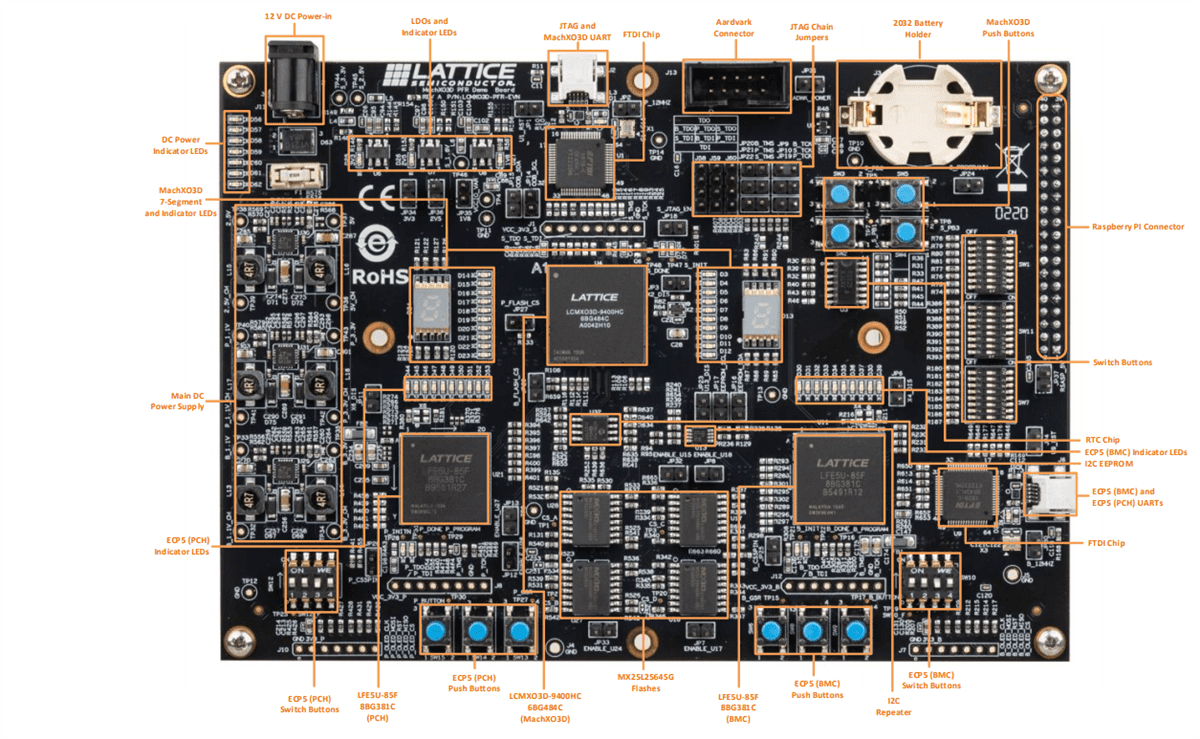

Front Layout

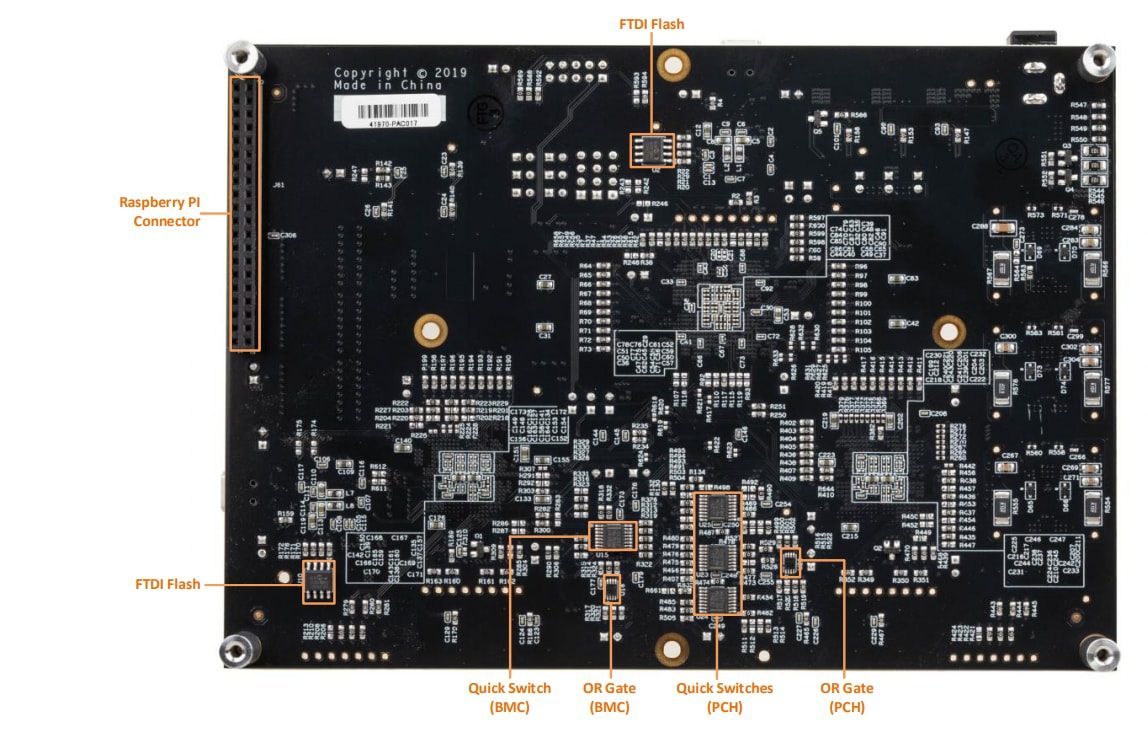

Back Layout

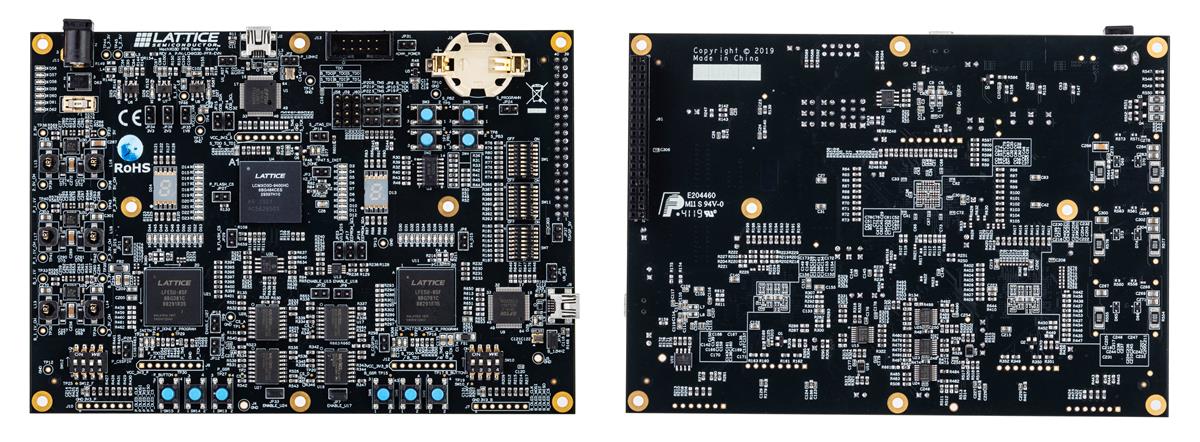

Overview
