Lattice Semiconductor ICE40UP5KSWAEVN SWA Evaluation Board

Lattice Semiconductor ICE40UP5KSWAEVN Single Wire Aggregation Evaluation Board is customizable and reduces cable and connector size while increasing reliability. The ICE40UP5KSWAEVN SWA Evaluation Board includes two boards to demonstrate the complete working design in a stand-alone configuration.

The Lattice ICE40UP5KSWAEVN SWA Evaluation Board supports up to 7 aggregated channels, and each channel can be either I²C, I²S, or GPIO. The SWA Evaluation Board offers PCB congestion relief using FPGAs for signal aggregation and transmission over a single wire.

Features

No FPGA tools knowledge necessary
Customizable via available Reference Design
Up to 7 channels can be aggregated

Each channel can be either I²C, I²S or GPIO
Board set can be configured as a stand-alone demo or in-system proof of concept

Kit Contents

Two SWA evaluation boards
Two jumper wires

Two Micro-USB cables
Quick start guide

Lattice Semiconductor ICE40UP5KSWAEVN SWA Evaluation Board

Features

Kit Contents

Videos

Board Layout

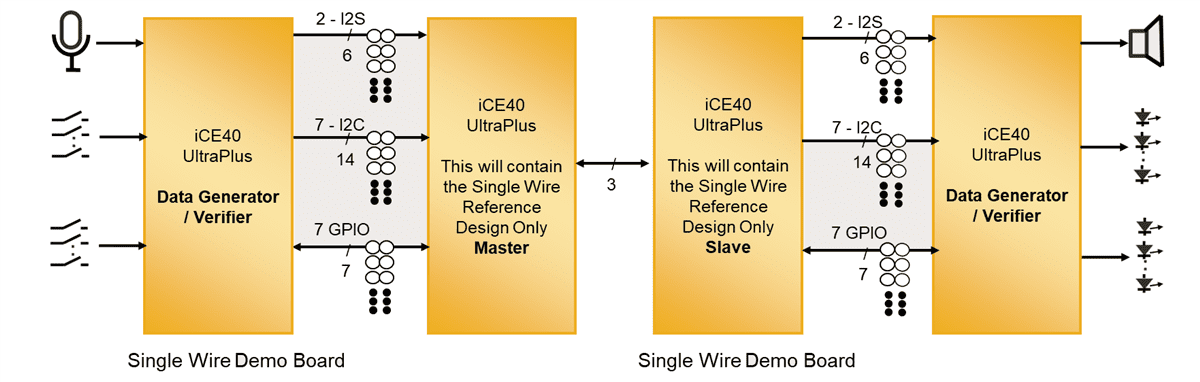

Block Diagram

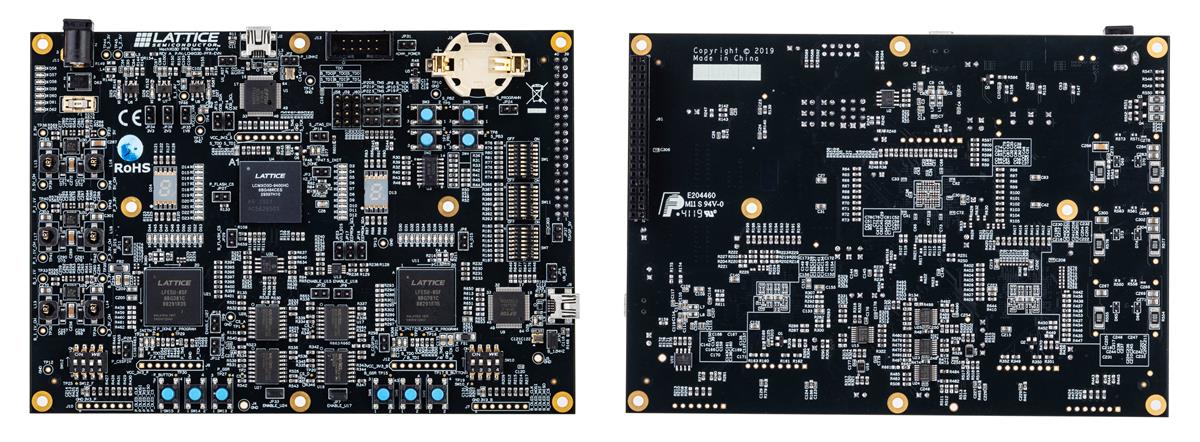

Overview
