Lantronix Open-Q™ 660 µSOM Development Kit

Lantronix Open-Q™ 660 µSOM Development Kit is a cost-effective, high-performance, exposed board platform powered by the advanced Qualcomm® Snapdragon™ SDA660 processor. The 660 µSOM exposed board platform provides an ultra-compact “micro SOM” form factor.

The Lantronix Open-Q 660 µSOM Development Kit is designed to quick-start the evaluation of the Open-Q 660 µSOM (Micro System on Module) and the development of advanced, intelligent, embedded, and IoT products.

The 660 µSOM Kit supports the Open-Q™ LCD / touch panel and optional 13MP camera module. The Kit has many GPIO, sensor, audio, and other expansion interfaces for Android application developers, OEMs, consumer manufacturers, hardware component vendors, camera vendors, and product designers.

Features

  • Qualcomm® Snapdragon™ SDA660 SoC
  • Powered by ultra-compact (50x25mm) Open-Q 660 µSOM
  • Open-frame Mini-ITX Form-factor Carrier Board (170x170mm)
  • USB Type-C with VESA DisplayPort video output
  • Android™ 9

Kit Contents

  • Carrier board
  • SOM
  • 12V power supply
  • Quick start guide
  • Access to full documentation
  • SW updates
  • Basic development kit support

Videos

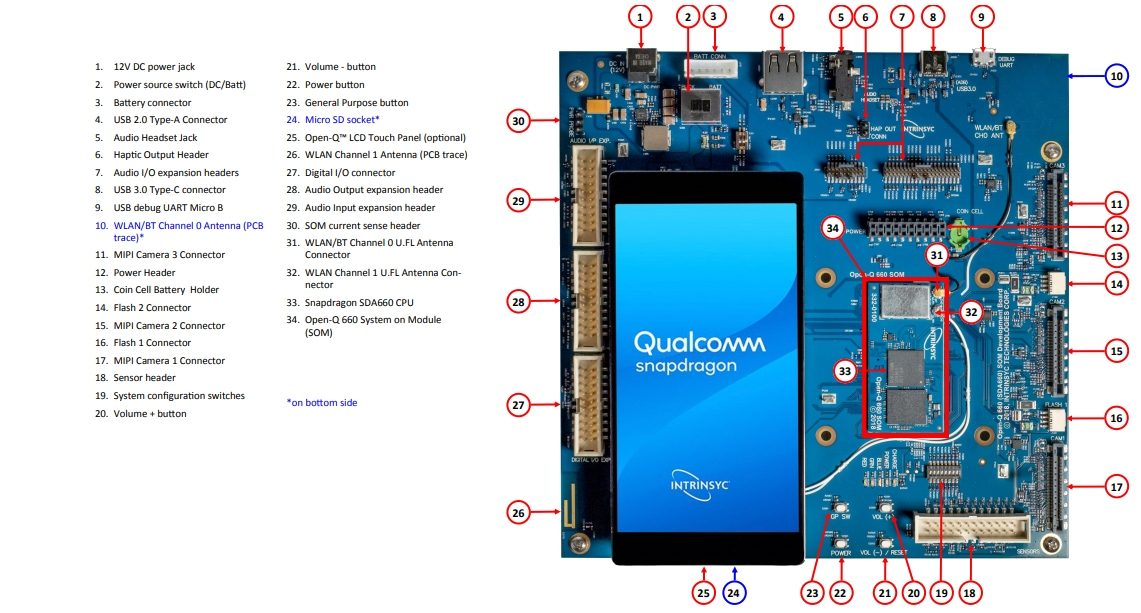

Board Layout

Lantronix Open-Q™ 660 µSOM Development Kit

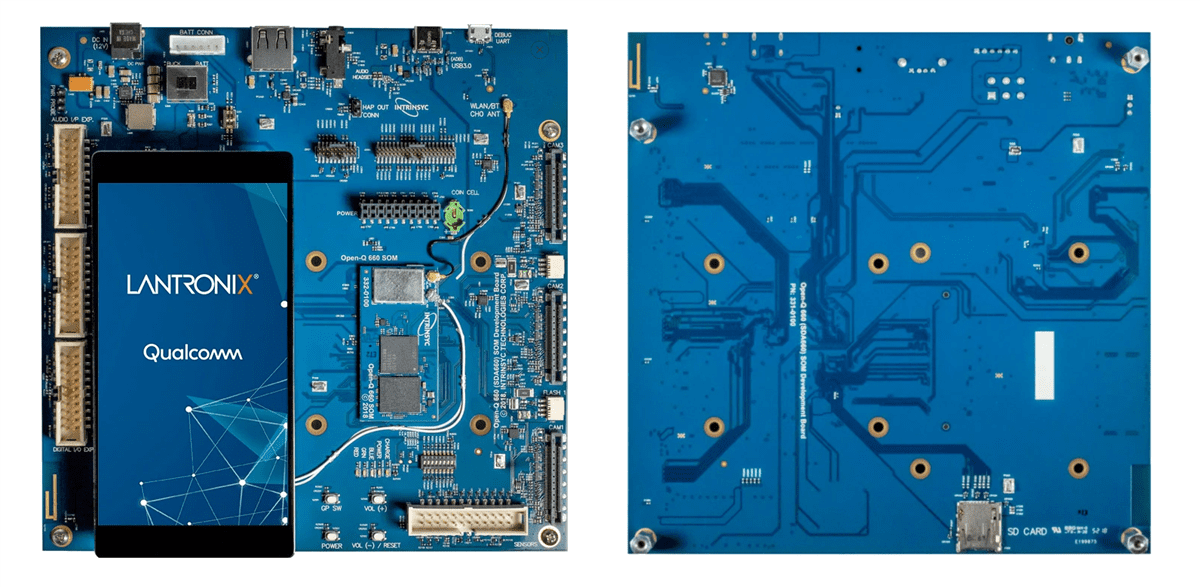

Overview

Lantronix Open-Q™ 660 µSOM Development Kit

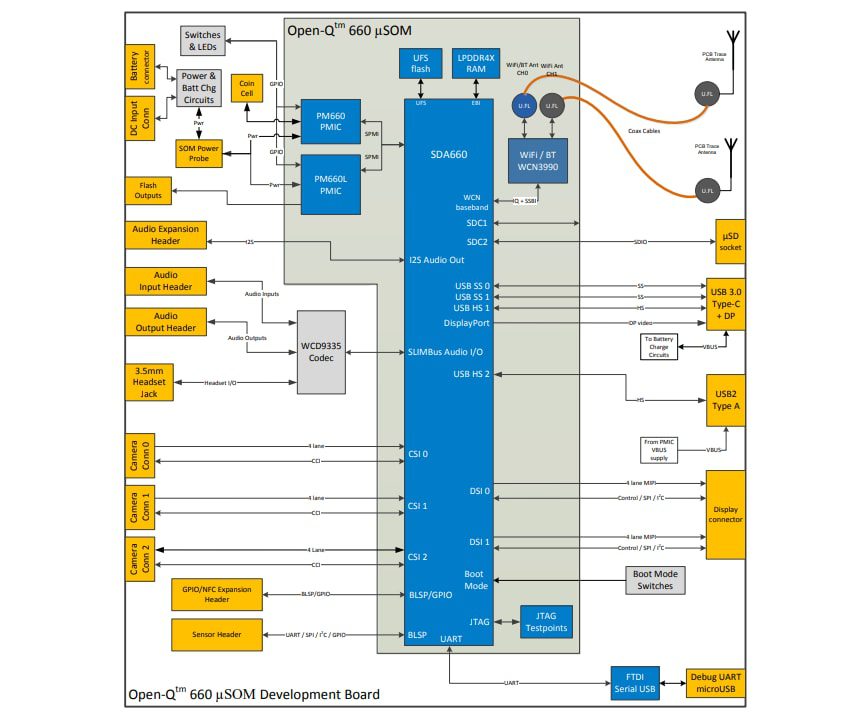

Block Diagram

Block Diagram - Lantronix Open-Q™ 660 µSOM Development Kit

Lantronix Open-Q™ 660 µSOM Development Kit
