Lantronix Open-Q™ 626 µSOM Development Kit

Lantronix Open-Q™ 626 µSOM Development Kit is based on the Qualcomm® Snapdragon™ 626 processor and is powered by the Open-Q 626 µSOM (micro System on Module). The Open-Q 626 µSOM Development Kit is a cost-effective, feature-rich, camera-tuned, exposed board platform designed to evaluate the Open-Q 626 µSOM and jump-starting development of connected camera devices or other high performance embedded and IoT products.

The Lantronix 626 µSOM Development Kit supports optional LCD or 1080p HDMI out, 4K Ultra HD H.264/H.265 encode and decode, up to 24MP cameras, mic inputs, and stereo outputs. The 626 µSOM Development Kit supports the Open-Q™ LCD/Touchscreen and optional IMX214 13MP camera module.

Features

  • Qualcomm® Snapdragon™ 626 processor (APQ8053Pro)
  • Powered by micro-sized (50x25mm) Open-Q 626 µSOM
  • Mini-ITX Form-factor Carrier Board (170x170mm)
  • HDMI output, USB Type-C, 3 camera connectors
  • Exposed I/O for evaluation and proof of concept work
  • Android™ 10, Android™ 9, Yocto Linux®

Kit Contents

  • Carrier board
  • SOM
  • 12V power supply
  • Quick start guide
  • HDMI Cable
  • Access to full documentation
  • SW updates
  • Basic development kit support

Videos

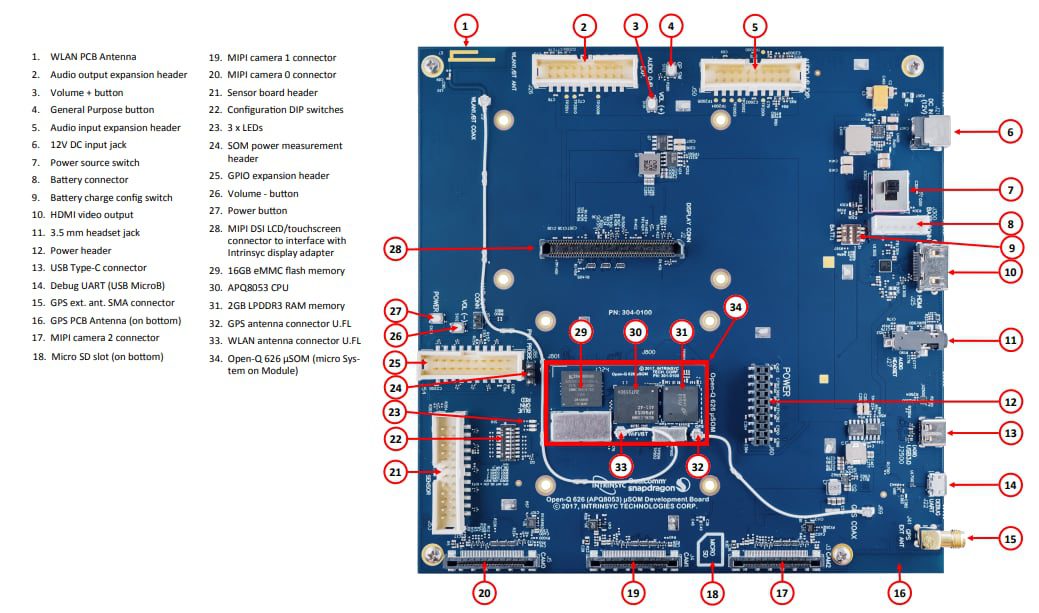

Board Layout

Lantronix Open-Q™ 626 µSOM Development Kit

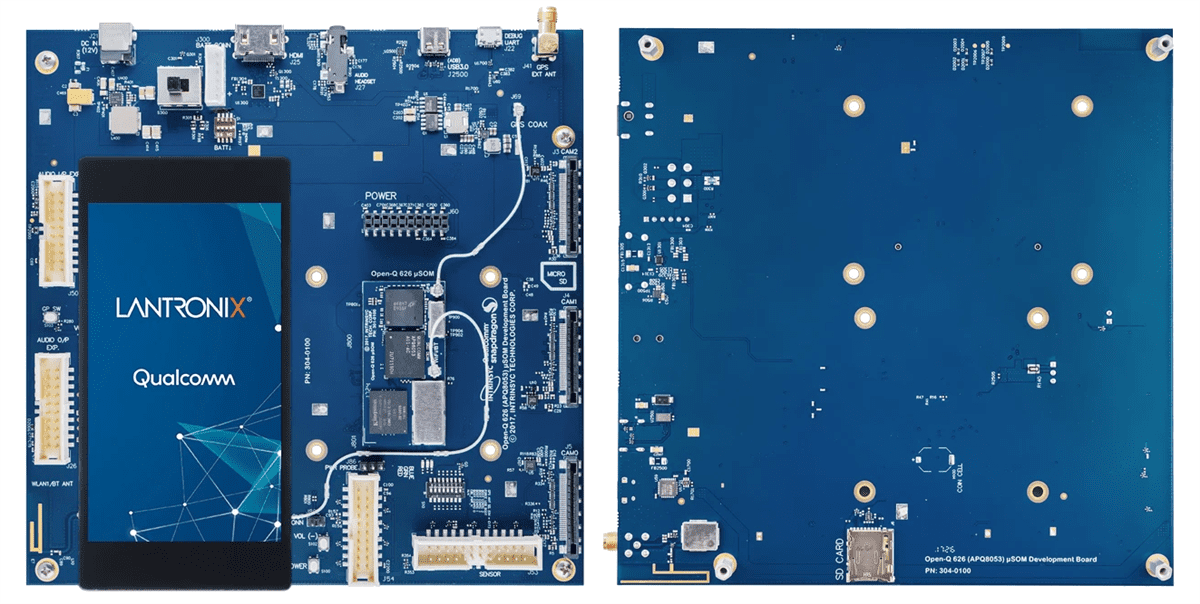

Overview

Lantronix Open-Q™ 626 µSOM Development Kit

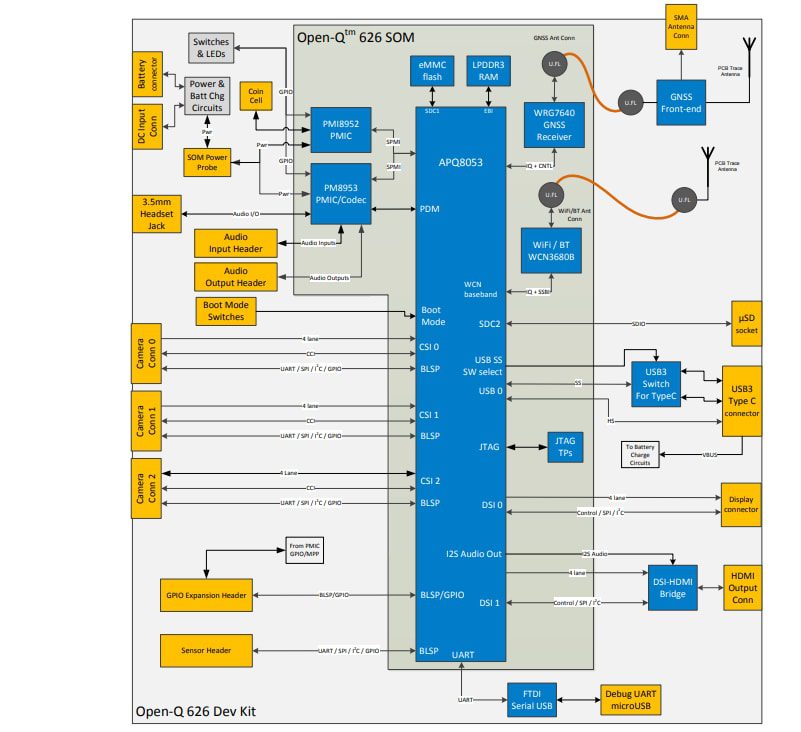

Block Diagram

Block Diagram - Lantronix Open-Q™ 626 µSOM Development Kit
