Lantronix Open-Q™ 5165RB System on Module (SOM)

Lantronix Open-Q™ 5165RB System on Module (SOM) is an ultra-compact 50mm x 29mm production-ready computing module based on the powerful Qualcomm^® QRB5165 System-on-Chip. The QRB5165 System-on-Chip delivers multiple specialized processing cores such as the 5th generation AI Engine, hardware video analytics engine, Qualcomm Spectra™ ISP, Qualcomm Adreno™ GPU, and Qualcomm Hexagon™ DSP. Utilizing Wi-Fi 6 connectivity, advanced camera features, and high-speed interfaces, the 5165RB SOM creates the ideal computing core for various leading-edge robotics applications.

The Lantronix Open-Q 5165RB SOM comes with Ubuntu 18.04 Linux with support for ROS2, Docker, and other advanced AI and Robotics SDKs and dev tools. The device offers many benefits, including:

SOM with powerful specialized processing cores
On-device Qualcomm AI Engine™ for machine vision, neural networks, deep learning
Power-efficient edge AI computing solution pushing 15 TOPS
Ubuntu 18.04 Linux with support for Robot Operating System 2.0
Container and accelerator APIs – Docker, TensorFlow Lite, NNAPI, and others

Features

Qualcomm QRB5165 SoC – long life IIoT chipset
8GB LPDDR5 RAM + 128GB UFS Flash
Ubuntu 18.04 Linux
On-device AI Engine up to 15 TOPS

Dedicated Computer Vision Engine
Multiple MIPI camera and display ports
Multiple high-speed connectivity options
Ultra-compact 50mm x 29mm form factor

Applications

Advanced Robotics – consumer/industrial/defense
AI-enabled Drones and UAVs
Machine vision platforms
AI processing gateways

Face detection and recognition
Deep learning and neural network processing
Autonomous systems

Lantronix Open-Q™ 5165RB System on Module (SOM)

Features

Applications

Videos

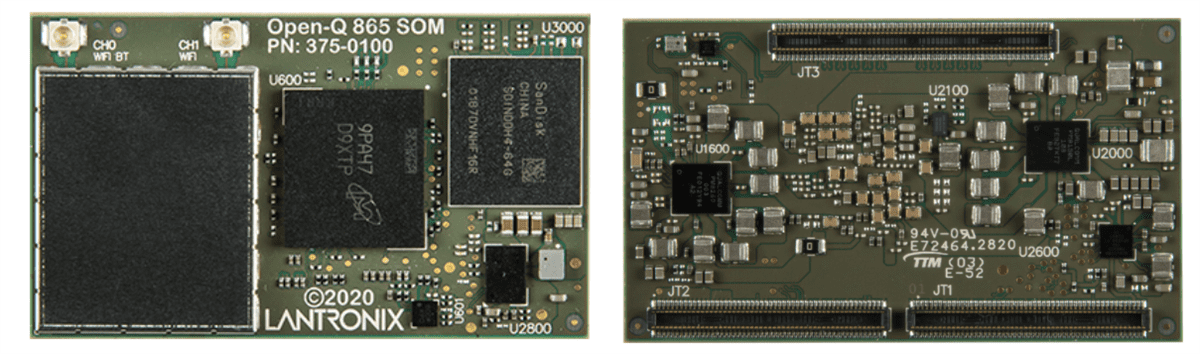

Front & Back View

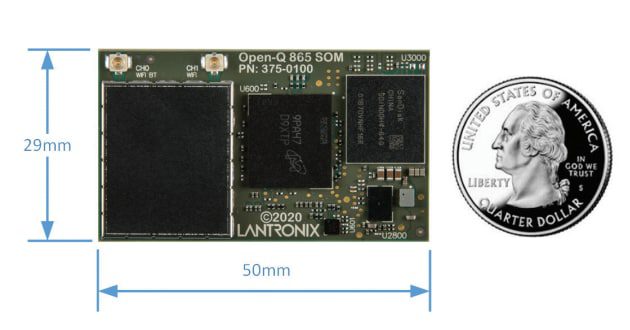

Package Size
