Lantronix Open-Q™ 2290 System in Package (SIP)

Lantronix Open-Q™ 2290 SIP is an entry-tier solution that delivers good performance, impressive graphics, and camera capabilities. This SIP is based on the Qualcomm^® QCS2290 System-On-Chip (SoC), with onboard audio codec, 16GB of eMMC, 2GB of LPPDR4 memory, and pre-certified Wi-Fi^® and BLUETOOTH^®. The Open-Q™ 2290 SIP comes with Android™ 12 Go software and are FCC and RED certified. This SIP comes in 35mm x 35mm x 2.8mm dimensions and operates within an extended temperature range of -25°C to 85°C. Typical applications include POS/kiosks, vending machines, exercise equipment displays, camera applications, and entry-level robotics, including warehouse and logistics.

Features

Scalable volume deployment through:
- Future ConsoleFlow™ support for device management
- Zero-touch provisioning
- OTA updates of functionality and security
Secure compute platform

Delivers impressive graphics, camera capabilities, and power performance
Long device life cycle

Specifications

QCS2290 chipset
2GB LPDDR4 memory
16GB eMMC storage
Display interfaces:
- One 4-lane; DSI D-PHY 1.2. Split link supported
- Adreno 702 @ 845MHz
- OpenGL ES 3.1, Vulkan 1.1, OpenCL 2.0
- HD+ (1680×720) @60fps
Camera interfaces:
- 2-ISP
- Two cameras:
  - 13MP +13MP @30fps
- One camera:
  - 25MP @30fps

I/O:
- USB 3.1
- Type-C
- SDIO
- UART
- SPI
- I²C
- I³C
- GPIO
-25°C to 85°C extended operating temperature range

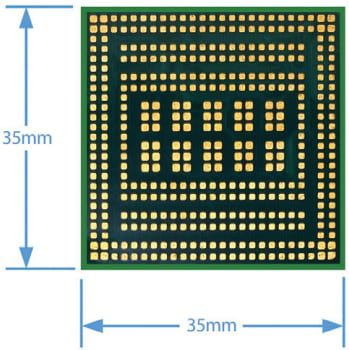

35mm x 35mm x 2.8mm dimensions
FCC and RED certifications
Android™ 12 Go software

Applications

Industrial IoT applications, including handhelds and panels
Camera applications
POS/kiosk

Vending machines
Exercise equipment displays
Entry-level robotics, including warehouse and logistics
