Lantronix EMG™ 7500 Edge Management Gateway

Lantronix EMG™ 7500 Edge Management Gateway offers serial RJ45 and USB console connectivity with pre-installed I/O modules and connectivity modules. The EMG 7500 unit consists of one I/O module (four-port serial RJ45 or four-port serial USB) on the front and one I/O module (4 port serial RJ45 or four-port serial USB) or one connectivity module (Wi-Fi card, dialup analog modem) on the back.

The Lantronix EMG 7500 Edge Management Gateway supports one optional internal LTE cellular modem for a total of two modules on the back of the unit. The modules on the EMG 7500 are not user-swappable. The EMG 7500 provides dual Ethernet network ports for in-band network connectivity.

Features

Enables system administrators to remotely manage devices with serial and/or USB console ports with RS-232C (now EIA-232) or USB compatible serial consoles in a 1U-tall rack space
RJ45 RS-232 or USB Type A serial console connections
- Up to 8 serial RJ45 RS-232 or USB Type A console connections
In-band network device access
- Dual 10/100/1000 Base-T Ethernet only
Out-of-band network device access
Local terminal, internal cellular modem (LTE cellular), Wi-Fi, or dialup analog modem
- One internal cellular modem and one slot on the back which can house a connectivity module
Modular design
- One I/O module (front) and one I/O or connectivity module (back)
Data logging, device port buffering, network performance monitoring, system event logs and console event notification via email
Integrated automatic fail-over/fail-back mechanism for seamless connection to IT equipment

Sun Break Safe compatible
Remote power manager (RPM) control of UPS and PDU devices
Scripting to automate tasks performed on the CLI or on device ports
Performance Monitoring
- Probes to analyze network performance
Security
- Enterprise-grade security and secure user access control with local or remote authentication
Power
- An external Universal AC (90W, 100-240V, 50/60Hz) power supply provides power to the unit DC power port, supports 9 to 30Vdc
- Convection cooled, silent operation, low power consumption
Integration with Lantronix ConsoleFlow™
- Compatible with Lantronix ConsoleFlow™management software for an end-to-end Out-ofBand (OOB) management solution

Applications

Servers
- Unix, Linux, Windows, and others
Networking equipment
- Routers, switches, storage networking
Telecom
- PBX, voice switches

Other systems with serial interfaces
- Heating/cooling systems, security/building access systems, uninterruptible power supply (UPS), medical devices

Lantronix EMG™ 7500 Edge Management Gateway

Features

Applications

Videos

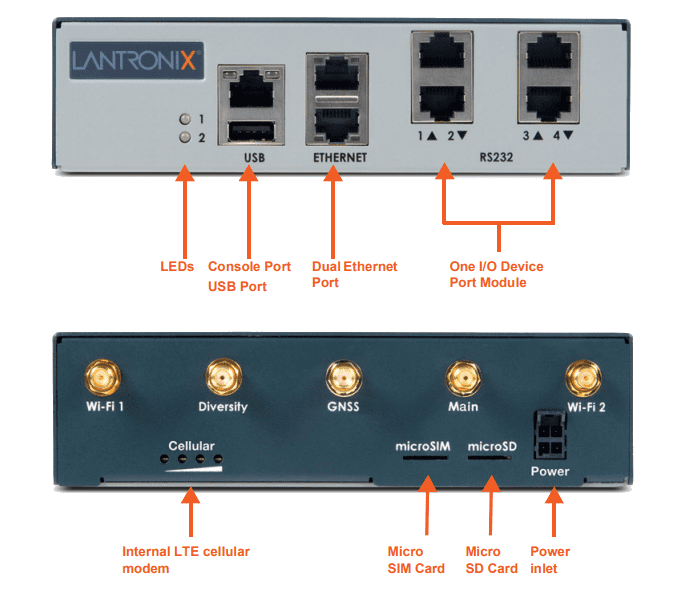

Hardware Components
