KYOCERA Display 5.8″ WXGA TFT Display Panels

KYOCERA Display 5.8″ WXGA TFT Display Panels provide a reliable, cost-effective solution for industrial applications requiring a bright, readable display. The 5.8″ WXGA TFT Display Panels feature a 1280 x 768 resolution, an 85° viewing angle, and a 1000:1 contrast ratio. These devices are easily connected using a standard LVDS (Low-Voltage Differential Signaling) interface.

The KYOCERA Display 5.8″ WXGA TFT Display Panels integrate a white LED backlight, providing a luminance of 800cd/m².

Features

KDA-058OB-20004S-A
- Optical-bonded PCAP touch screen
  - Number of touches: 5
  - Controller Interface: USB or I²C
  - Controller: External
  - Cover glass: Clear, 1.5mm, ±.20mm
- 1280 x 768 resolution
- Backlight: White LED
- Backlight lifetime: 50,000 hours (typical)
- 800cd/m² luminance (before touch panel is applied)
- 1000:1 contrast ratio
- 85° viewing angle (H/V)
- 3.3V supply voltage
- -20°C to +70°C operating temperature range
- 141.29mm x 88.5mm x 7.49mm outline dimensions

TCG058WXLPBVNN-AN30
- 1280 x 768 resolution
- Backlight: White LED
- Backlight lifetime: 50,000 hours (typical)
- 800cd/m² luminance
- 1000:1 contrast ratio
- 85° viewing angle (H/V)
- 3.3V supply voltage
- -20°C to +70°C operating temperature range
- 141.29mm x 88.5mm x 7.49mm outline dimensions

Applications

Industrial
Vending machines

White goods
Use interface

KYOCERA Display 5.8″ WXGA TFT Display Panels

Features

Applications

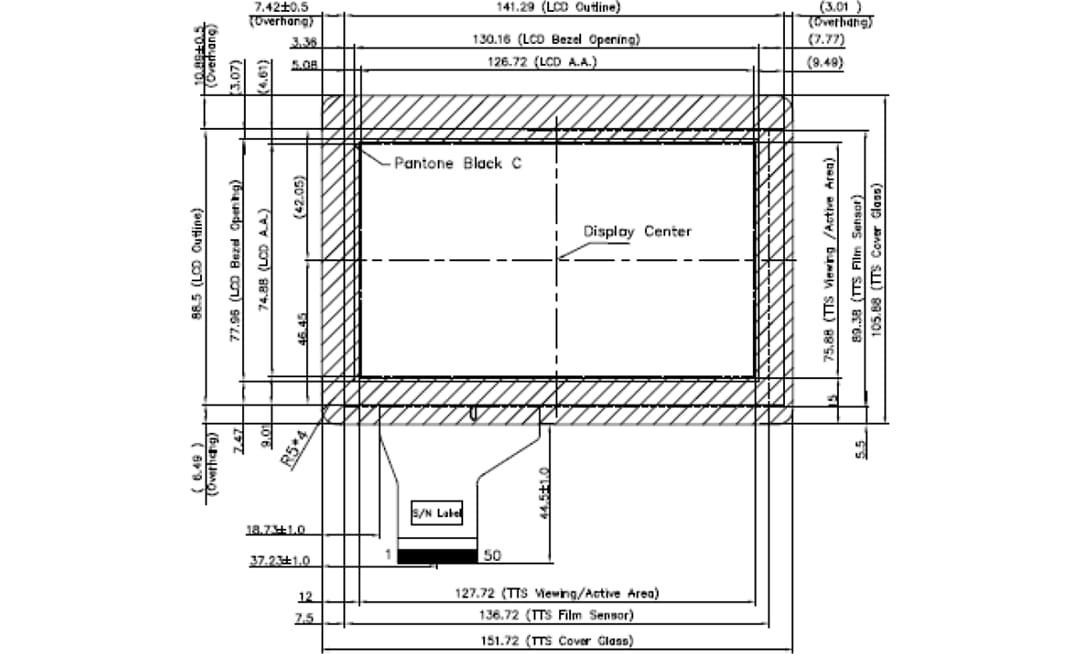

KDA-058OB-20004S-A Dimensions

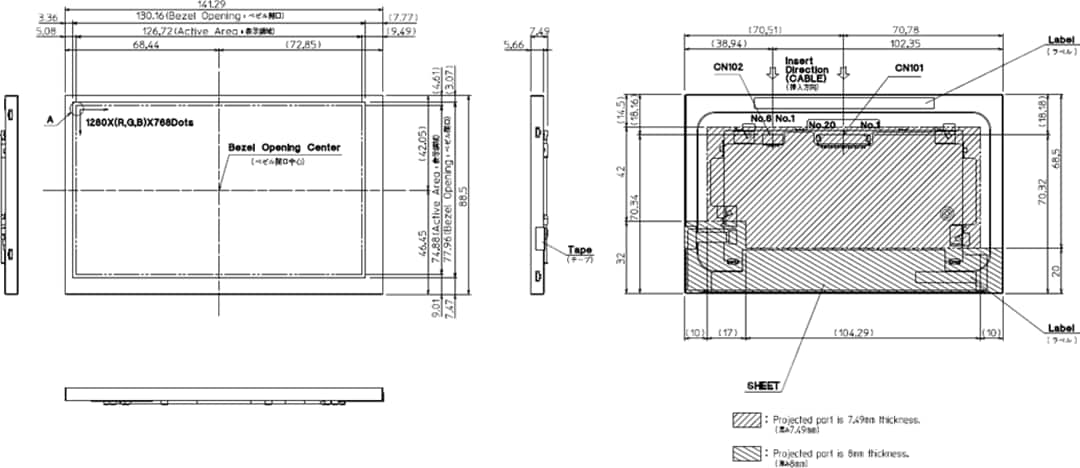

TCG058WXLPBVNN-AN30 Dimensions
