KYOCERA AVX FloXY® Board to Board Connectors

KYOCERA AVX FloXY^® Board to Board Connectors offers movement (float) in the X and Y axis to absorb misalignment (offset) during assembly and operation. These connectors meet the high-reliability requirements for automotive and industrial markets. The FloXY^®connectors feature a high-temperature design and reduce solder joint stress, and suppress cracking problems. These connectors are available in multiple stack heights of parallel and vertical mating options. The FloXY connectors operate in the -40℃ to 125℃ temperature range. These connectors are ideally used in industrial, automotive, and transportation design needs.

View FloXY 5652 Board-to-Board Connectors

View FloXY 5656 Board-to-Board Connectors

View FloXY 5655 Board-to-Board Connectors

Features

Parallel and vertical and are available in multiple stack heights
High-temperature design
IATF 16949 certified
The floating structure enables the mating of multiple connectors on the same board
Automatic assembly by robotics is possible
Reduces stress on solder joints and suppresses solder cracking problems

Add value design:
- High-speed transmission
- EMI control with shield
- High-current
- Hybrid power-line

Specifications

5652:
- 0.6A current
- XY±0.85mm

5656:
- 0.5A current
- XY±1mm

5655:
- 0.7A current
- XY±0.5mm
-40℃ to 125℃ temperature range

Applications

Industrial
Automotive
Transportation design needs

KYOCERA AVX FloXY® Board to Board Connectors

Features

Specifications

Applications

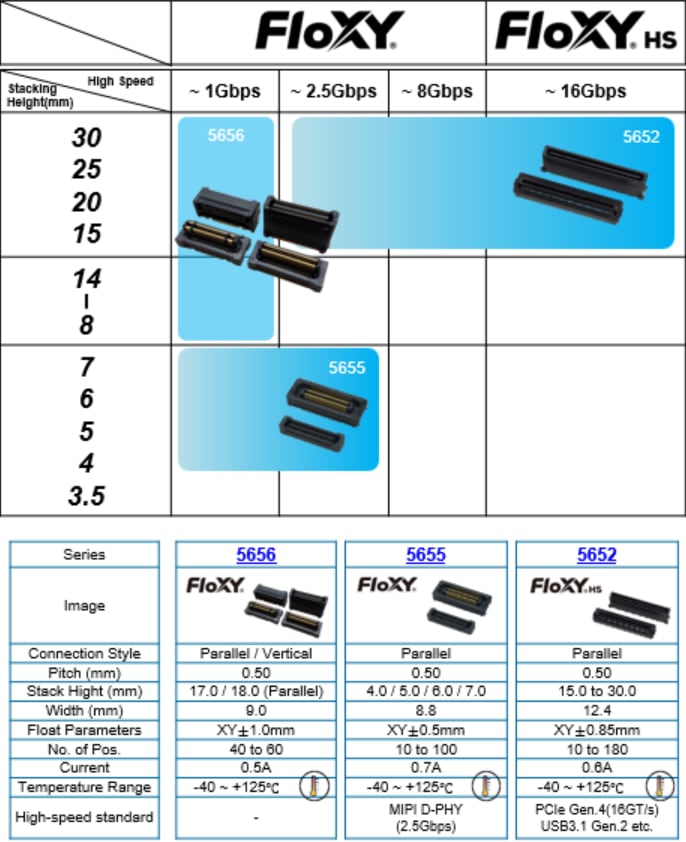

Chart
