Kontron D3723-R mITX Industrial Motherboards

Kontron D3723-R mITX Industrial Motherboards support the AMD Ryzen™ Embedded R2000 processor series with integrated AMD Radeon™ Vega Graphics. The D3723-R mITX series includes four versions with different AMD processors depending on how much (graphical) performance is required. These motherboards come equipped with up to four DisplayPorts, one embedded DisplayPort, and one dual-channel LVDS (24bit). The boards can power up to four independent displays in 4K resolution. Kontron D3723-R mITX Industrial Motherboards feature reliable product maintenance and technical support. The series is ideal for applications with high graphical requirements, such as medical displays, casino gaming, thin clients, and industrial PCs.

Features

Can be used in applications with high graphical requirements
Comprehensive feature and tool set
German engineering and production

Strict lifecycle management and reliable product maintenance
Beneficial total-cost-of-ownership
Includes technical support

Applications

Medical displays
Industrial PCs

Thin clients
Casino gaming

Specifications

AMD Radeon Vega Graphics (within SoC)
Up to 4x DisplayPort V1.4
Dual-channel LVDS (24bit) and eDP V1.3 (4k) onboard
PCI Express® x4 (Gen3)
8-bit GPIO and HD audio onboard
USB 2.0 and USB 3.1 (Gen1/Gen2) onboard
2x SATA III; USB stick socket
M.2 Key-B, M.2 Key M, and Mini-PCI Express supported

Dual GbE LAN onboard, including teaming support
AMD integrated TPM V2.0 onboard and socket for optional TPM module
Wide range internal/external DC Input (8V to 34V)
HW Watchdog onboard
RS-232/485/422 support onboard
Windows 11 support

Kontron D3723-R mITX Industrial Motherboards

Features

Applications

Specifications

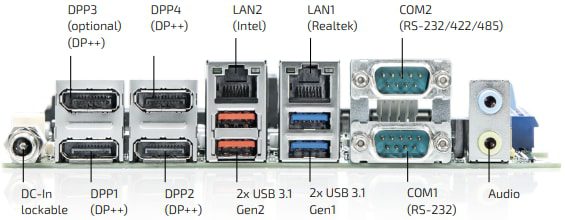

Ports

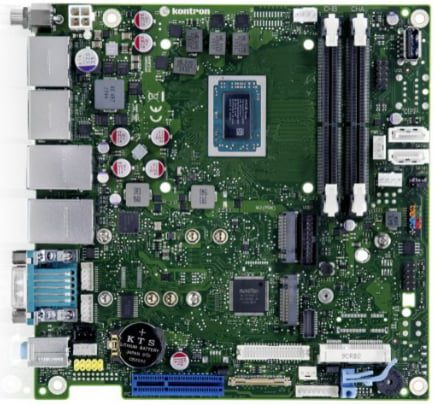

Top View

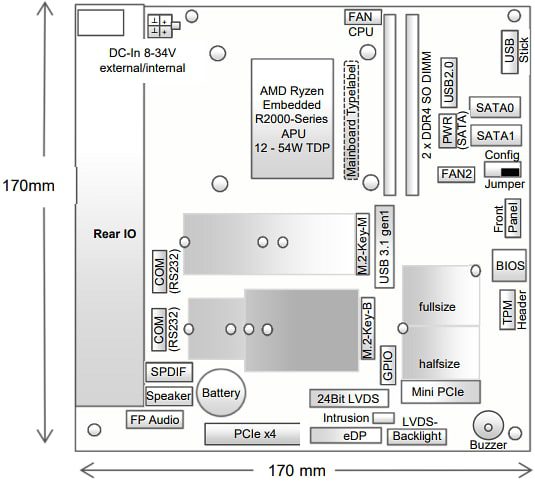

Connector / Socket Diagram
