KOA Speer UR73VH2B SMD Current Sense Resistors

KOA Speer Electronics UR73VH2B SMD Current Sense Resistors are current-detecting resistors for power supplies and motor circuits. The resistors feature a low resistance (<100mΩ) and high accuracy for current detection. KOA Speer Electronics UR73VH2B SMD Current Sense Resistors provide high reliability and performance and are suitable for flow and reflow soldering. The UR73VH2B series is AEC-Q200 qualified and RoHS compliant.

Features

Current detecting
Low resistance
High accuracy
High reliability

High performance
Suitable for flow and reflow soldering
RoHS compliant
AEC-Q200 qualified

Applications

Power supplies
Motor circuits

Specifications

-55°C to +155°C operating temperature range
70°C rated ambient temperature
125°C rated terminal temperature

1W power rating
<100mΩ resistance range

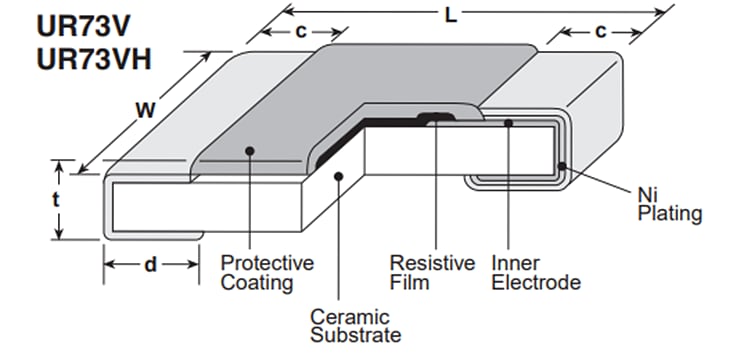

3.2mm x 1.6mm dimensions
