KOA Speer RN73R-2E Ultra-Precision Thin Film Resistors

KOA Speer RN73R-2E Ultra-Precision Thin Film Resistors feature high heat resistance up to +155°C and an ultra-high precision tolerance (±0.05%). KOA Speer RN73R-2E Thin Film Resistors offer enhanced moisture resistance (+85°C ±2°C, 85% ±5% RH, 1000 hours) by the use of a special protective layer over resistive film construction. RN73R2E resistors also feature a power rating of 0.25W and TCR values of ±10 to ±100ppm/°C. The series is AEC-Q200 qualified and is available with lead-free terminations to meet EU RoHS requirements.

Features

AEC-Q200 qualified
1000 hours endurance at +85°C, ΔR of ±0.1%
High-temperature exposure, ΔR of ±0.25%
High precision type ±0.05% available
Low current noise

Improved moisture resistance by high humidity protective coating
Suitable for control circuits in various industrial equipment
Meets EU-RoHS requirements
+85°C rated ambient temperature, rated up to +155°C

Applications

Automotive electronics
Industrial equipment
Measurement equipment

Specifications

10Ω to 1MΩ resistance
0.25W power rating

50V to 200V working voltage
10ppm/°C to 100ppm/°C temperature coefficient

KOA Speer RN73R-2E Ultra-Precision Thin Film Resistors

Features

Applications

Specifications

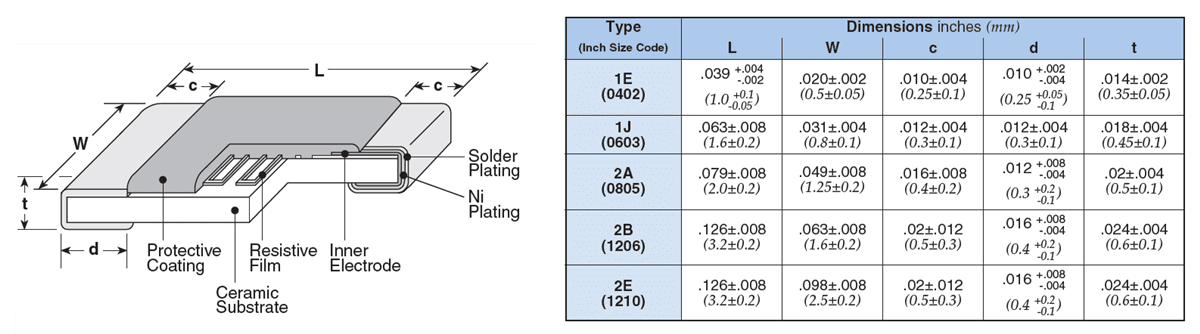

Dimensions
