Kneron RLC-MS3F Intelligent Face Recognition Module

Kneron RLC-MS3F Intelligent Face Recognition Integrated Module is a structured light smart lock face recognition module. The module has liveness detection and facial recognition functions. It can output IR an image, liveness detection results, face recognition results, and more. The module can be used at night, under normal indoor lighting, outdoor sunlight, and under various lighting conditions.

Features

RLC-MS3F face recognition module with 3D liveness algorithm and face recognition algorithm
Contactless, non-inductive unlock door experience without pressing fingerprints or entering passwords
Can be used by the elderly or children with blur fingerprints
The 3D liveness detection algorithm and face recognition algorithm are deeply optimized based on the KL520 platform
Vertical angle of view of 71° enables the lock to support a height range from 1.2m to 2.0m
Horizontally, it supports a field of view angle of 58° and a unlock distance of 0.3-1.0 meter

Typical power consumption 5V / 600mA (non-average power consumption)
Can adapt to night, indoor daylight, outdoor daylight (can unlock within 100000 Lux ), corridor light and a wide range of lighting environment
Supports lithium battery and AA battery
Super fast speed wake-up to unlock, the typical time is 1.0S
Mature and stable chip hardware solutions and strict product quality inspection
The interface is simple and easy to integrate

Applications

Face recognition
3D liveness detection

3D FR smart lock
Access control etc.

Kneron RLC-MS3F Intelligent Face Recognition Module

Features

Applications

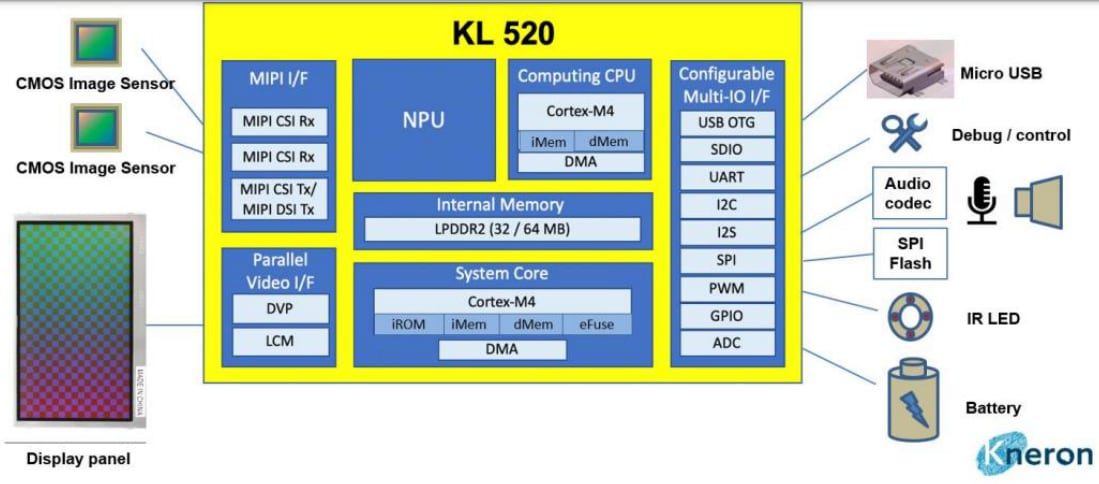

Block Diagram
