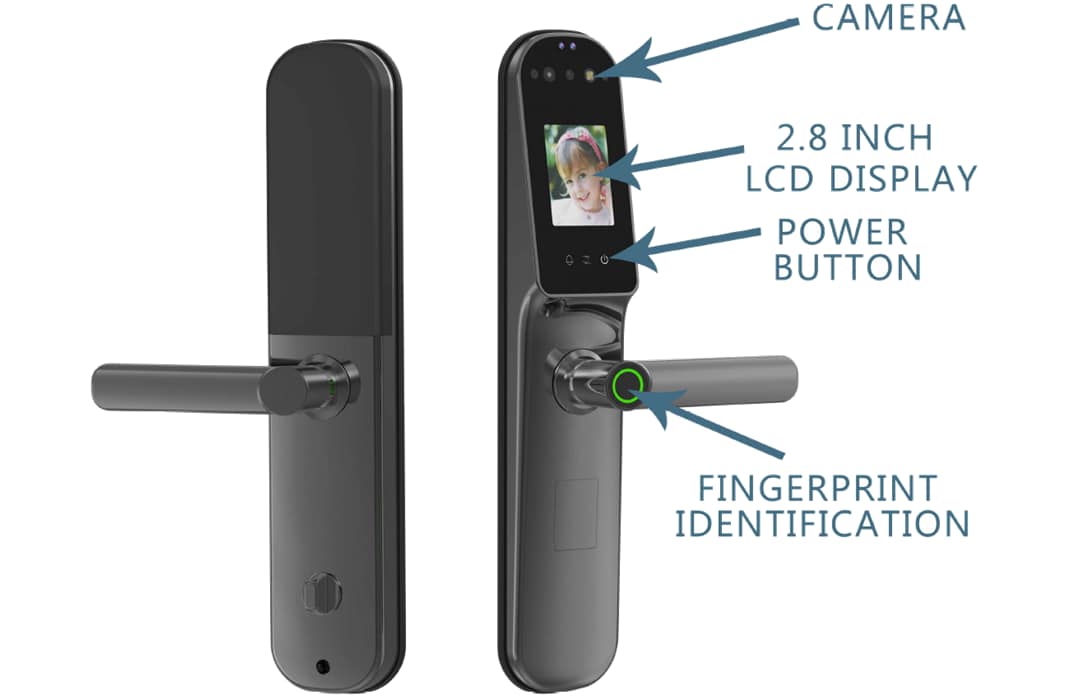

Kneron 3D AI Face Smart Lock

Kneron 3D AI Face Smart Lock combines sophisticated face-recognition and fingerprint identification in a single access-control device. Based on the Kneron KL520 AI SoC (System on a Chip), the 3D AI Face Smart Lock uses Edge Artificial Intelligence (AI) for recognition. As the face-recognition and fingerprint data is all processed and stored on the device rather than in the Cloud, the system provides fast response time and data security.

Using a real-time NIR (Near-Infrared) + RGB camera and Edge AI algorithms, the Smart Lock captures 3D facial information, enabling it to resist “spoofing” attacks such as masks, photos, and videos.

The Kneron 3D AI Face Smart Lock can be equipped with a BLUETOOTH®, Wi-Fi®, or NB-IoT) (NarrowBand-Internet of Things) module for wireless connectivity. The device can also be unlocked by a six to twelve-digit password.

Features

Based on the Kneron KL520 AI SoC
Face-recognition, fingerprint identification, and password access options
Fast response and recognition speed using on-device AI

Strong environmental adaptability
High security
Ultra-low power consumption

Applications

Access control

Specifications

3D face recognition module
- NIR + RGB camera
- 2.8″ LCD display
- In vivo safety
  - Pass rate: ≥97.80%
  - False recognition rate: @FRA 0.0001%
- Identify security
  - Pass rate: ≥98.50%
  - False recognition rate: @FRA 0.0001%
- Face capacity: 100
- Recognition speed: <1 second
- Side range: 1.3M to 1.85M
Fingerprint module
- Sampling pixel: 160 x 160
- Fingerprint capacity: 100
- False rate: <0.1%
- False recognition rate: <0.001%

Password module
- Password length: 6 to 12 digit
- Code capacity: 20
- Password protection supported
- Virtual password supported
Power characteristics
- Power supply: 8 “AA” batteries
- Standby power: <100µA
- Battery life: Approximately one year
- Emergency power supply：USB external 5V
Environmental characteristics
- -10°C to +60°C operating temperature
- 40% to 90% operating relative humidity
