Kinetic Technologies KTS1898AEOAE-MMEV01 Evaluation Kit

Kinetic Technologies KTS1898AEOAE-MMEV01 Evaluation Kit is used to demonstrate and evaluate the KTS1898A Load Switch’s functionality, performance, and PCB layout. The kit includes a fully assembled and tested PCB with the KTS1898A IC installed, two pairs of high-current XT30-to-Banana power cables, and a printed copy of the Quick Start Guide. The KTS1898A has EN active-low input logic with an internal 1MΩ pull-down.

Applications

Notebooks
Gaming PCs
Mini desktop PCs

Docking stations
Monitors

Kit Contents

KTS1898A EVAL fully assembled PCB
2x XT30-to-Banana power cables, red/black pair
Anti-static bag

Printed quick start guide
EVAL Kit box

Required Equipment

Bench power supply for V_IN – 5V/9V/12V/15V/20V/28V/32V and 0.5A/1.5A/3A/5A/6A, as needed for the intended application; for testing over-voltage protection and withstand voltage, a 35V adjustable bench power supply is preferred
1x or more digital multimeters used to measure input/output voltages and currents

Kinetic Technologies KTS1898AEOAE-MMEV01 Evaluation Kit

Applications

Kit Contents

Required Equipment

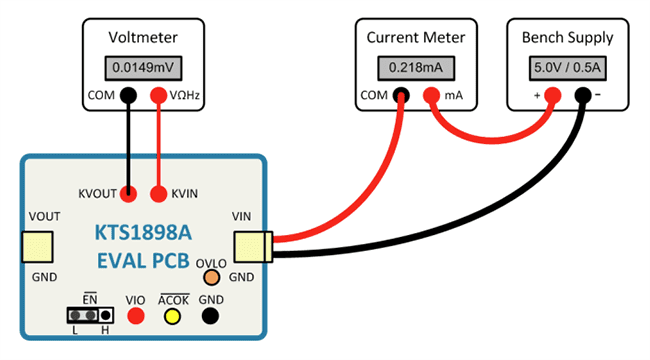

Typical Test Setup Diagram
