Kinetic Technologies KTS1697A Evaluation Kit

Kinetic Technologies KTS1697A Evaluation Kit is designed to demonstrate and evaluate the functionality, performance, and PCB layout of the KTS1697A current-sink protection load switch. This kit consists of a fully assembled and tested PCB with the KTS1697A IC installed, two pairs of high-current XT30-to-Banana power cables, and a quick-start guide. Typical applications include notebooks, netbooks, ultrabooks, tablets, mini desktop PCs, docking stations, and monitors.

Features

-0.3V to 29V input withstand voltage range
3V to 23V input operating voltage range

1.5V to 5.5V VIO operating voltage range
0A to 7A output load current range

Applications

Notebooks
Netbooks
Ultrabooks
Tablets

Mini desktop PCs
Docking stations
Monitors

Kit Contents

1 x KTS1697A eval fully assembled PCB
2 x XT30-to-Banana power cables, red/black pair
1 x anti-static bag

1 x quick-start guide
1 x eval kit box

Kinetic Technologies KTS1697A Evaluation Kit

Features

Applications

Kit Contents

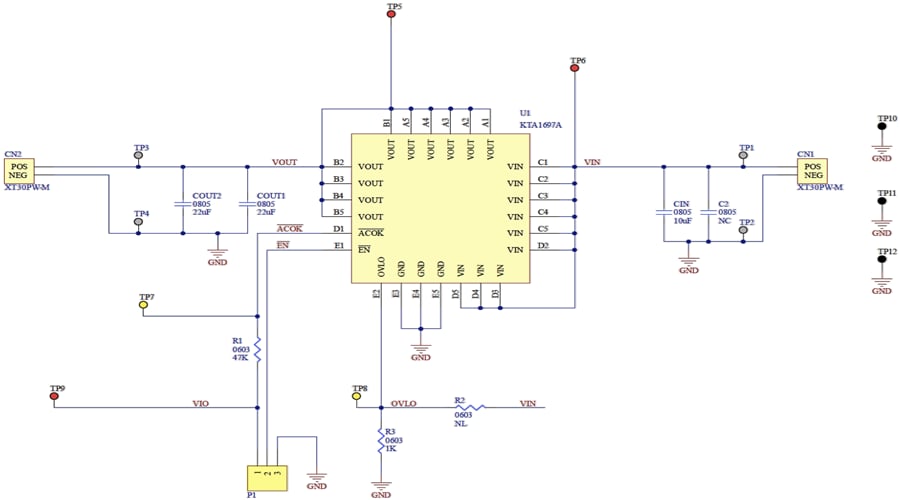

Electrical Schematic Diagram

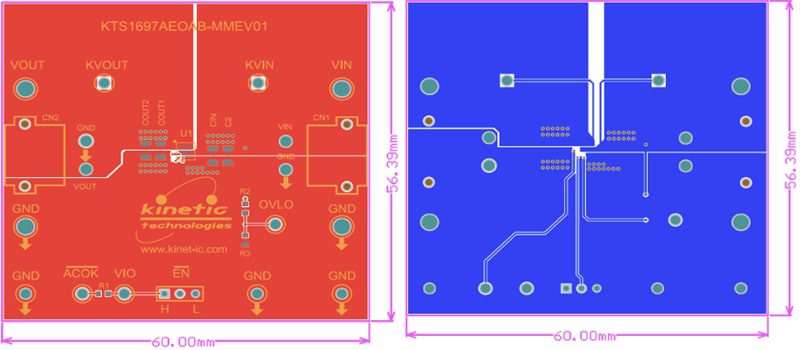

PCB Layout
