Kinetic Technologies KTS1601 Evaluation Kit

Kinetic Technologies KTS1601 Evaluation Kit is designed to evaluate and demonstrate the functionality, performance, and PCB layout of the KTS1601 2A slew rate-controlled load switch. This kit consists of a fully assembled and tested PCB with the KTS1601 IC installed and a quick start guide. The KTS1601 evaluation kit is ideal for mobile phones and tablets, portable instruments, DSC, DVR, GPS, and Solid State Drives (SSDs).

View Kinetic Technologies KTS1601EUM-1-TR slew rate-controlled load switch.

Features

1.5V to 5.5V operating voltage range
Up to 2A continuous DC current
2.7ms built-in slew rate controlled turn-on

<1µA low quiescent current
-40°C to 85°C operating temperature range

Applications

Mobile phones and tablets
Solis State Drive (SSD)

Portable instruments
DSC, DVR, and GPS

Kit Contents

1 x KTS1601 eval kit fully assembled PCB
1 x anti-static bag

1 x quick start guide
1 x eval kit box

Kinetic Technologies KTS1601 Evaluation Kit

Features

Applications

Kit Contents

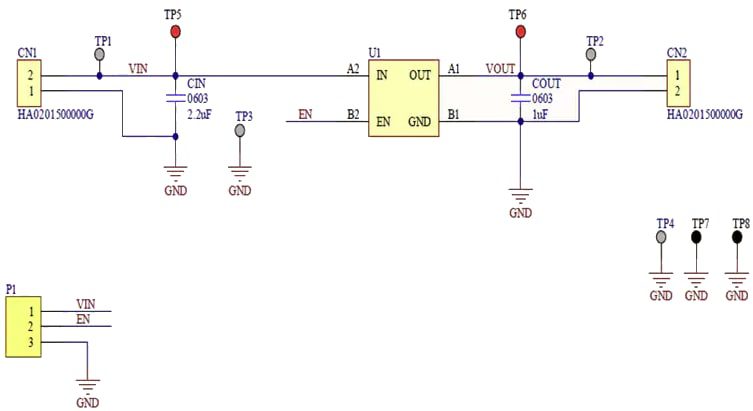

Electrical Schematic Diagram

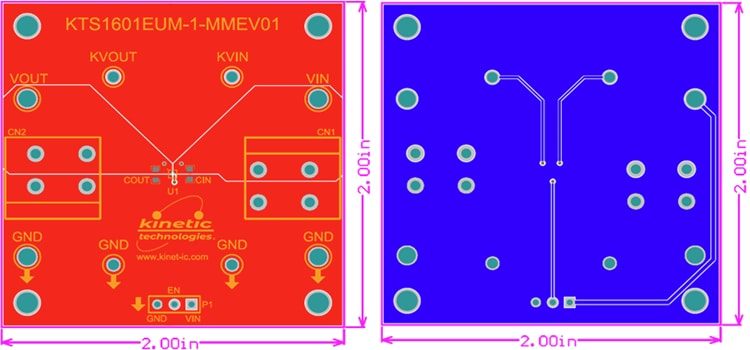

PCB Layout
