Kinetic Technologies KTC2115 Synchronous Boost Regulator

Kinetic Technologies KTC2115 Synchronous Boost Regulator provides a true output disconnect, ensuring a shutdown quiescent current of less than 1µA, thereby extending the battery life. This regulator offers high efficiency over a wide output current range. This is achieved by the automatic selection of a PWM/PFM mode based on the prevailing output load conditions. The ‘Pass Through’ mode allows the transfer of input power directly to the output (not boosting) with over-current protection. The KTC2115 regulator exhibits a constant on-time design that simplifies the design and provides ultra-fast transient response without requiring any external compensation components.

This synchronous boost regulator is packaged in advanced, RoHS and Green compliant, 1.26mm x 1.29mm, and 9-balls Wafer-Level Chip Scale Package (WLCSP). The KTC2115 regulator is ideal for Lithium-Ion/Polymer battery applications such as smartphones and tablets, mobile internet devices, USB OTG, wearables, and portable devices.

Features

2.7V to 5.5V wide input voltage range
5V output voltage
I_OUTup to 1.5A @ V_OUT = 5V, V_IN ≥3V
2.5MHz PWM switching frequency
High efficiency and low quiescent current:
- Over 95% efficiency
- 1µA shutdown current
- 33µA quiescent current in ‘Pass Through’
- 56µA quiescent current in PFM operation
±2% DC voltage accuracy in PWM mode

Undervoltage Lockout (UVLO)
Short circuit protection
Hiccup current limit
Over temperature protection
Selectable Pass-Through mode or true load disconnect during shutdown
Output capacitor pre-charge and soft-start
Pb-free 9-Bump, 1.26mm x 1.29mm WLCSP package
RoHS and Green-compliant
-40°C to 85°C operating temperature range

Applications

Smartphones and tablets
Mobile internet devices
USB OTGs

Wearables
Portable devices

Kinetic Technologies KTC2115 Synchronous Boost Regulator

Features

Applications

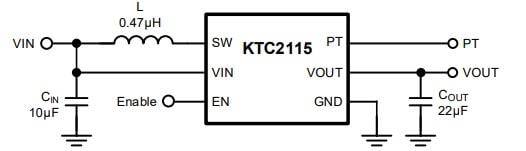

Typical Application Circuit

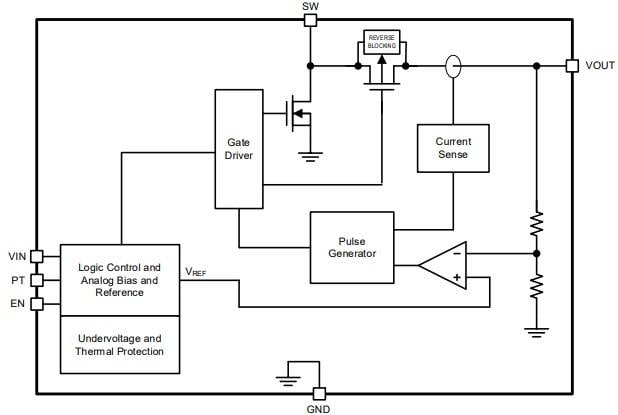

Functional Block Diagram
