Kinetic Technologies KTC2110A Low IQ Synchronous Boost

Kinetic Technologies KTC2110A Low IQ Synchronous Boost features a high-efficiency, micropower synchronous boost for Lithium-Ion/Polymer battery applications. The KTC2110A achieves high efficiency over a wide output current range by operating in auto PWM/PFM control. The control method is automatically selected according to the output load conditions.

The KTC2110A features a Bypass Mode, which allows passing input power directly to output with over current protection when the EN pin is pulled LOW. The constant on-time design does not require external compensation components, simplifying the design and providing an ultra-fast transient response.

Inrush current-limiting feature is provided to reduce inrush current, which minimizes the voltage droop on the battery when the device is turned on. The Kinetic Technologies KTC2110A is packaged in advanced, RoHS and Green compliant, 1.38mm x 1.38mm, 9-balls Wafer-Level Chip-Scale Package (WLCSP).

Features

2.5V to 5.5V wide input voltage range
Output voltage of 5.4V
I_OUT up to 1.0A at V_OUT = 5.4V, V_IN ≥ 3.0V
3MHz PWM switching frequency
High efficiency and low quiescent current
- Over 95% efficiency
- 35µA quiescent current in bypass mode
- 55µA quiescent current in PFM operation
±2% DC voltage accuracy in PWM mode

Undervoltage Lockout (UVLO)
Short circuit protection
Hiccup current limit
Over temperature protection
Output capacitor pre-charge and soft-start
Pb-free 9-bump, WLCSP 1.38mm x 1.38mm
RoHS and Green compliant
-40°C to 85°C operating temperature range

Applications

Smartphones and tablets
Mobile internet devices
USB OTG

Wearables
NFC applications
Portable devices

Kinetic Technologies KTC2110A Low IQ Synchronous Boost

Features

Applications

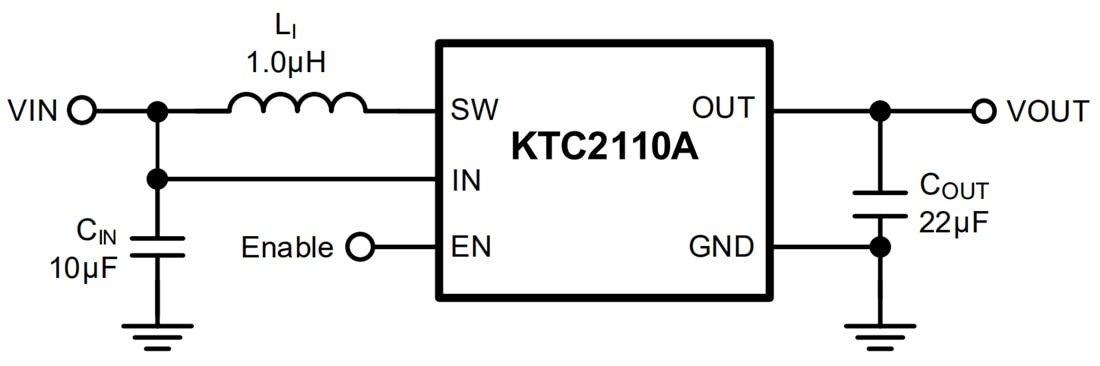

Typical Application
