Kinetic Technologies KTC2110 Low IQ Synchronous Boost Converter

Kinetic KTC2110 Low I_Q Synchronous Boost Converter features a high-efficiency, micropower synchronous boost for Lithium-Ion/Polymer battery applications. It offers true output disconnect to achieve a shutdown quiescent current of less than 1.0µA, extending battery life. High efficiency over a wide output current range is achieved by selecting PWM/PFM mode automatically depending on the output load conditions. A Pass-Through mode allows the user to transfer the input power directly to the output (not boosting) with over-current protection.

The constant on-time design does not require any external compensation components, simplifying the design and providing an ultra-fast transient response. The inrush current-limiting feature minimizes the voltage droop on the battery supply when the device is turned on. The Kinetic KTC2110 is packaged in an advanced RoHS and Green compliant 1.38mm x 1.38mm 9-ball Wafer-Level Chip-Scale Package (WLCSP).

Features

2.5V to 5.5V wide input voltage range
Output voltage 5.0V
I_OUT up to 1.0A at V_OUT = 5.0V, V_IN ≥ 3.0V
3MHz PWM switching frequency
High efficiency and low quiescent current
- Over 95% efficiency
- 1µA shutdown current
- 35µA quiescent current in pass-through
- 55µA quiescent current in PFM operation
±2% DC voltage accuracy in PWM mode

Undervoltage Lockout (UVLO)
Short circuit protection
Hiccup current limit
Over temperature protection
Selectable pass-through mode or true load disconnect during shutdown
Output capacitor pre-charge and soft-start
Pb-free 9-Bump, WLCSP 1.38mm x 1.38mm
RoHS and Green compliant
-40°C to 85°C operating temperature range

Applications

Smartphones and tablets
Mobile Internet devices
USB OTG

Wearables
Portable devices

Kinetic Technologies KTC2110 Low IQ Synchronous Boost Converter

Features

Applications

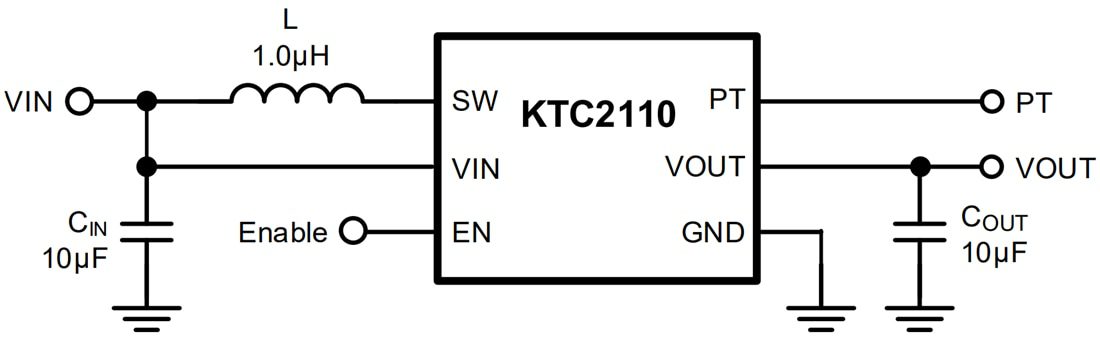

Typical Application
