Keystone Electronics Surface Mount (SMT) Test Points

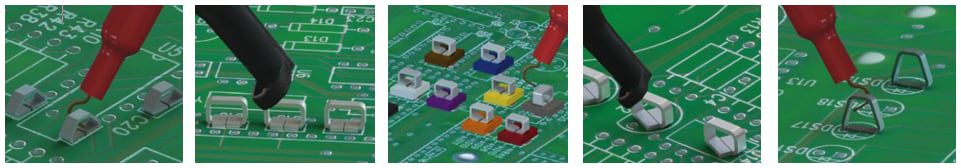

Keystone Electronics Surface Mount (SMT) Test Points provide efficient, safe, board-level testing and simplify testing on dense circuit boards. The SMT test points are manufactured using flat wire to provide a large mounting surface area. Keystone Electronics’ Surface Mount (SMT) Test Points encompass multiple types such as micro-miniature, miniature, color-keyed, compact, and hybrid mount. With silver-plated phosphor bronze terminals, the components are all compatible with mechanical pick & place assembly systems and ideal for use with probes, clips, and hooks.

Features

Microminiature
- Ideal for use with miniature probes, clips, and hooks
- Ultra low profile, ideal for advanced surface mount PCB applications
- .010″ (.25mm) silver-plated phosphor bronze terminals
Miniature
- Ideal for use with most standard probes, clips, and hooks
- Unique design provides exceptional strength and durability
- .015″ (.38mm) silver-plated phosphor bronze terminals
Color-Keyed
- Ideal for use with most standard probes, clips, and hooks
- Color-keyed for visibility and quick identification
- .008″ (.20mm) silver-plated phosphor bronze terminals
- LCP base rated UL94V-0

Compact
- Ideal for use with standard probes, clips, and hooks
- Unique design provides exceptional strength and durability
- .015″ (.38mm) silver-plated phosphor bronze terminals
Hybrid Mount
- Locating pin provides a positive location during the assembly process
- Increased solder strength
- Can be used as an SMT test point or when used with a .032″ (.81mm) board, as a THM test point
- .010″ (.25mm) silver-plated phosphor bronze terminals
